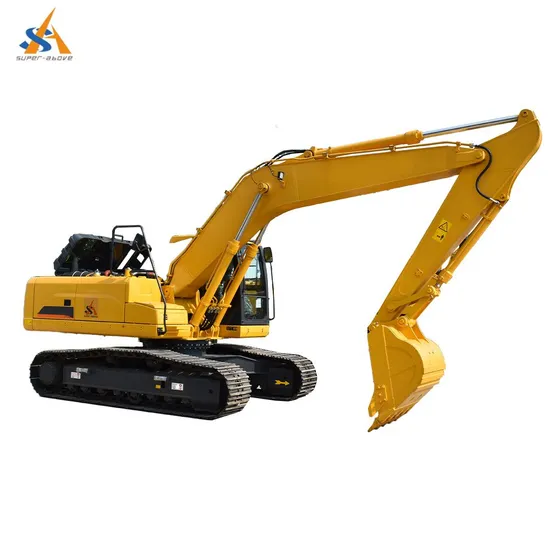

Super-Above 30ton Hydraulic Crawler Excavator1.5 Cbm Bucket Xe305D with High Quality Engine

Product Description

Product Description

Super-above 30Ton Hydraulic Crawler Excavator for Sale
Super-above hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to
more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators
and such characteristics of less fuel consumption and higher flexibility.
Performance Characteristics:
* Imported Cummis engine is powerful ,low noise,energy efficient.
* Advanced energy-saving Kawasaki hydraulic system provides good controllability and high efficiency;
* Customized Super-above exclusive engine can meet Euro stage IV Emission Standard.
2. Multiple applications
* Different boom, arm and bucket combinations can provide excellent all-around versatility.
* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience * Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function. * Integrated control panel and large display screen provide
multiple information.
Optional configuration: break hammer and pipeline.quick coupler,rotary driller,hydraulic vibrating tamper are available.
Specification Specification

Model		Unit	SA300
Operating weight		Kg	32500
Bucket capacity		m³	1.27-1.6
Engine	Model engine	/	QSB7
	Injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	169/2050
	Maximum torque/speed	N.m/rpm	895/1250
	Displacement	L	6.7
Main performance	Travel speed	km/h	5.2/3.1
	Swing speed	r/min	9.8
	Gradeability	°	35
	Ground pressure	kPa	56.4
	Bucket digging force	kN	198
	Arm digging force	kN	138
	Maximum tractive force	kN	252
Hydraulic system	Rated flow of main pump	L/min	2×259
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	30
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	520
	Hydraulic tank capacity	L	270
	Engine oil capacity	L	20
Appearance size	Overall length	mm	10645
	Overall width	mm	3190
	Overall height	mm	3410
	Width of platform	mm	3050
	Total width of chassis	mm	3190
	Track shoe width	mm	600
	Wheel base of crawler	mm	4028
	Track gauge	mm	2590
	Counterweight clearance	mm	1198
	Min. ground clearance	mm	538
Working range	Max. digging height	mm	10146
	Max. dumping height	mm	7180
	Max. digging depth	mm	7200
	Max. vertical wall digging depth	mm	5190
	Max. digging radius	mm	10665
	Min. swing radius	mm	3076
Standard	Length of boom	mm	6200
	Length of arm	mm	3110
	Bucket capacity	m³	1.4

Product Show
Features& Applications
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill
precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other
toguarantee the rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering
constructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects.
