High-Performance Bit Drill Core Bit for Clay and Hard Sandstone

Product Description

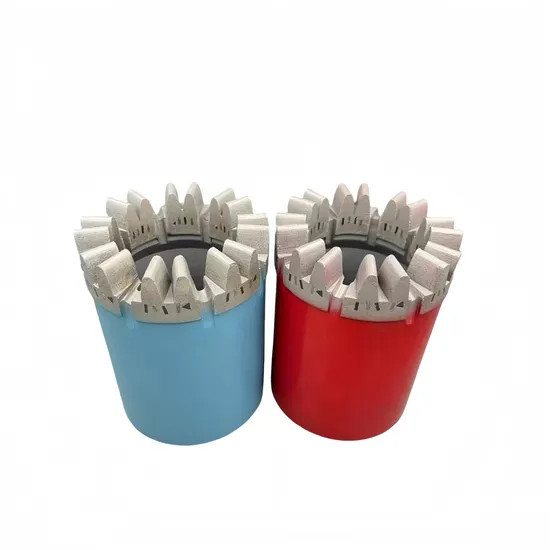

Presenting our BQ NQ HQ PQ Diamond Impregnated Core Drill Bit - a symbol of precision and strength in drilling technology, crafted to excel in various geological challenges.
Explore the versatility of Forsun's core bits tailored to meet diverse applications and cutting media requirements. Forsun proudly offers six distinct types of core bits:
---Impregnated Diamond Type: Engineered for durability and efficiency, ensuring seamless drilling through the toughest terrains.
---Surface set Diamond Type: Precision and sharpness combined for superior performance in specific drilling scenarios.
---Tungsten Carbide Type: Robust design and unmatched wear resistance for challenging drilling conditions.
---PDC Type: Polycrystalline diamond compact bits delivering high-speed drilling efficiency and longevity.
---PCD Type: Perfected for precision, offering a cutting-edge advantage for various material explorations.
---Electroplated Diamond Type: Exceptional accuracy and control for intricate drilling tasks.
The cornerstone of any comprehensive Drilling System includes core bits, reaming shells, core barrels, drill rods, and a state-of-the-art drilling rig.
Core Bits are expertly designed for penetrating diverse materials such as rock, concrete, limestone, granite, marble, clay, basalt, schist, and quartz, ensuring versatile and reliable performance.

Size of The Core Bits and Reaming Shell
Description	Core Bits				Reaming Shell
Specification Model	Outside Diameter		Inside Diameter		Outside Diameter
	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.06
AC(AQ)	1.875	47.63	1.062	26.97	1.89	48.01
BC(BQ)	2.345	59.56	1.433	36.4	2.36	59.95
BC3(BQ3)	2.345	59.56	1.32	33.53	2.36	59.95
NC(NQ)	2.965	75.31	1.875	47.63	2.98	75.7
NC3(NQ3)	2.965	75.31	1.775	45.08	2.98	75.7
HC(HQ)	3.762	95.57	2.5	63.5	3.783	96.09
HC3(HQ3)	3.762	95.57	2.406	61.11	3.783	96.09
PC(PQ)	4.805	122.05	3.345	84.96	4.828	122.65
PC3(PQ3)	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.217	56.3
T2-76	2.992	76	2.429	61.7	3.004	76.3
T2-86	3.385	86	2.832	71.7	3.398	86.3
T2-101	3.976	101	3.295	83.7	3.988	101.5
T6-101	3.976	101	3.11	79	3.988	101.5
T6-131	5.157	131	4.252	108	5.157	131.5

We warmly invite you to explore our extensive range. Specializing in various drilling equipment, drill bits, drill rods, and an array of mechanical accessories, we promise innovation and excellence in every product.
With 30 years of unwavering dedication, we have been at the forefront of producing and innovating drilling equipment and accessories, committed to advancing the industry standards.Our diverse range includes: Hot pressed diamond drill bits and impregnated diamond drill bits, each crafted for specific needs and maximum performance.
Shapes available: Channel Flushing, Wedge, Turbo, Round Face Discharge, Elongated Face Discharge, Sand Profile, and Vortex Profile - each design caters to unique drilling requirements.
Models to choose from: BTW, NTW, HTW, AC(AQ), BC(BQ), BC3(BQ3), NC(NQ), NC3(NQ3), HC(HQ), HC3(HQ3), PC(PQ), PC3(PQ3), T2-56, T2-76, T2-86, T2-101, T6-101, T6-131 - ensuring you find the perfect fit for your projects.
