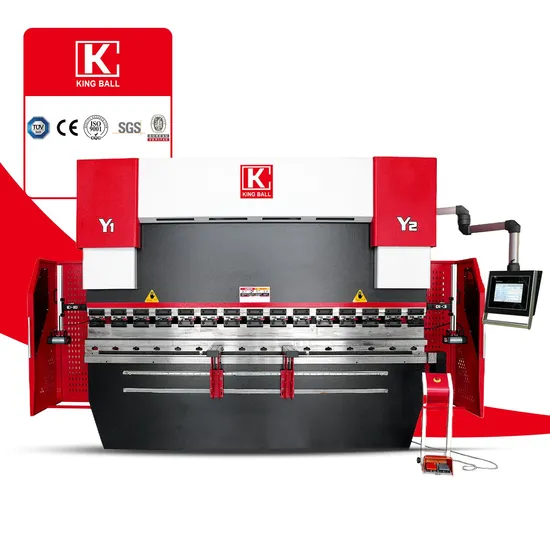

Safe and Reliable CNC Press Brake Machine Invoice Servo Motor with Da66t Delem Sheet Metal Bending Machine From China

Product Description

Electro-hydraulic CNC Press Brake			KCN-20032	KCN-20040	KCN-25032	KCN-25040	KCN-25040
Capacity		kN	2000	2000	2500	2500	2500
Max. Bending Length		mm	3200	3200	3200	4000	6000
Between Columns		mm	2600	3100	2600	3100	4800
Max. Shut Height		mm	480	480	530	530	530
Slide Stroke		mm	200	200	250	250	350
Throat Depth		mm	400	400	400	400	400
Down Speed		mm/s	130	130	120	120	120
Pressing Speed		mm/s	10	10	10	10	10
Return Speed		mm/s	120	120	110	110	110
Main Motor Power		kW	15	15	18.5	18.5	18.5
X axis stroke		mm	500	500	500	500	500
X axis speed		mm/s	250	250	250	250	250
R axis stroke		mm	200	200	200	200	200
R axis speed		mm/s	60	60	60	60	60
Outline Size	L	mm	3700	4500	3700	4500	6500
	W	mm	1920	1950	2150	2150	2200
	H	mm	2700	2700	3100	3200	3400
Weight		kg	12500	13800	15000	17800	23500

Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact Ways Ms. Linda Zhang Customer Manager E-mai:linda@jinqiu.cc FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
