2-Ply Single Facer Corrugation Line, Single Faced Corrugated Cardboard Making Machine

Product Description

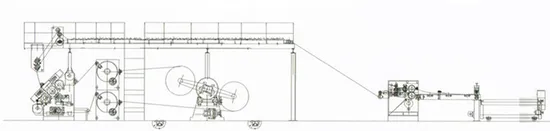

DW-120 Single Facer Corrugation Line
1) This product line consists of Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-320S Fingerless type Single Facer, NC Single Faced Slitter Cutter Stacker, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. Good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg

Corrugating Roller	Φ320mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length	300~9999mm
Cutting Precision	±1mm

Design Speed	120m/min
Heating Method	Steam Heating
Economic Working Speed	80~100m/min
