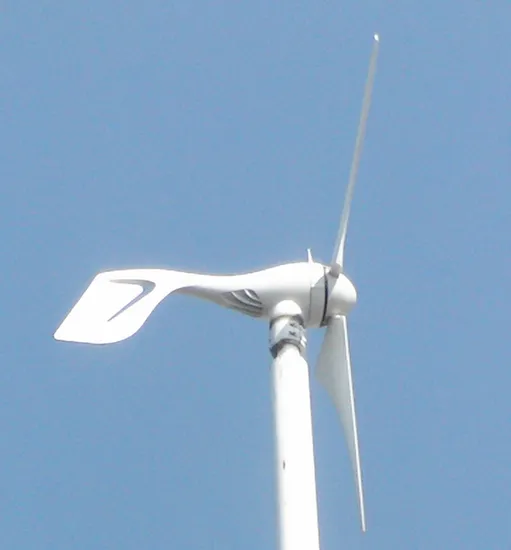

Economical Wind Turbine, Aluminum Alloy Casting Shell Wind Turbine

Product Description

Product Specification

	1 Series		2 Series
	WPG-QT/200	WPG-QT/300	WPG-LY/400	WPG-LY/500
Rated Power W	200	300	400	500
Rated wind speed m/s	10	10	10	10
Output voltage V	12 or 24	12 or 24	12 or 24	24
Startup wind speed m/s	2.5	2.5 or 2.0	2.4 or 1.8	2.4 or 1.8
Cut-in speed m/s	3.5	3.5	3.5	3.5
Wind speed limit m/s	35	35	30	30
Impeller diameter m	1.34	1.34	1.70	1.70/1.80
Number of blades pcs	3	3 or 5	3 or 5	3 or 5
Blade material	Reinforced nylon	Reinforced nylon	Reinforced nylon	Reinforced nylon
Body Material	Whole aluminum die-casting	Whole aluminum die-casting	Whole aluminum die-casting	Whole aluminum die-casting
Total Weight Kg	7	8.5	15	17.8
Installation	Hoop / flange	Hoop / flange	Flange	Flange
Protection	Electromagnetic braking and yaw	Electromagnetic braking and yaw	Electromagnetic braking and yaw	Electromagnetic braking and yaw
Controller Configuration	External, optional	External, optional	External, optional	External, optional

Company Information
Zibo Creation Metalware Co.,Ltd(China) is located in Zibo City, Shandong Province, China. Our facilities include a aluminum die casting plant, a gravity casting plant, a machining facility and an assembly plant encompassing 40000 square meters of manufacturing space. Established in 1994, ZBCX has been dedicated to providing companies with superior casting and tooling, along with metal finishing and CNC machining through state of the art machinery and processes.
ZBCX is a full service aluminum casting manufacturer that brings years of practical know-how and problem-solving to the challenges of today's electrical appliances,automotive,power generation, communication, construction, manufacturing and industries. Highly-trained engineering staff allow us to consistently and efficiently deliver a level of high quality, cost effective products to our customers.Most of all, we are committed to the most important standards of quality, delivery and reliability - YOURS. That's how we do business, and it's been that way for more than 20 years.

Alloy Cast	ADC-12, ADC-10, A356,A380,A360,AlSi11Cu3,AlSi12,AlSi9Mg, AlSi7Mg
Cast Capabilities	Aluminum die casting ; Aluminum gravity casting ; Zinc Die Casting
By Weight	0.05kg to 20kg
Moulds	Single cavity molds ; Multi-cavity molds of the same part ; Family cavity molds of different parts
Secondary Process	Various in-house and contracted secondary processes including shot blasting, deburring, sand blasting, powder coating, painting and anodizing.
Industries Serviced	Automotive ; Communications ; Green Technologies Heavy Duty ; Commercial Vehicle ; Industrial Medical ; Power Equipment ; Utilities

Inspection
Each product are carefully inspection from the blank to the finished.Customer satisfaction is our eternal pursuit.
1.Regularly scheduled dimensional production checks using the latest in applicable measuring technology
2.Complete customer-owned tooling maintenance program.
3.In-house Continual Improvement Team, which uses customer and company feedback to constantly increase our effectiveness in meeting or exceeding our customers' demands.
Certification
ISO9001:2008 BV and SGS
Package
Export carton. Retail packing available, and we will produce labels for you with your company logo.
Master Carton can be produced and printed per your requirement.
Consolidate with other items or with other orders is available for cost-efficient shipping.
