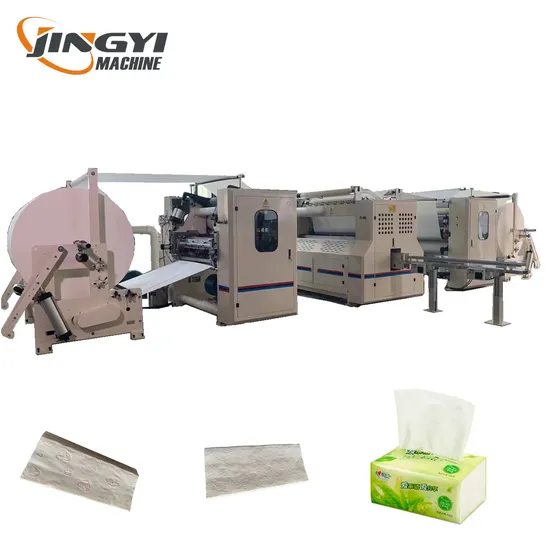

7lines Color Printing Embossing Facial Tissue Folding Machine

Product Description

7lines color printing embossing facial tissue folding machine
Outline:
Automatic facial tissue production line is consist of facial tissue folding machine, log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished products. This production line is of high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.

Machine model	Machine configuration	Output produce
CS-180/2-14L facial tissue folding machine	Jumbo roll width 400mm~2800mm Jumbo roll diameter:max 1100mm PLC computer programming Unfold paper:180*200MM Fold paper:90*200MM With embossing unit With edge-embossing unit(can be chosed)	(800~1000)*14*60*8 =5,376000~6,720,000pcs
Facial Tissue Auto Log Separator	8-10 logs per minute
DHX-150 log saw cutting machine	Design speed: about 150cuts/min Operating speed: about 120cuts/min
T80SD automatic facial tissue packing machine	Packing materials:plastic bags Packing speed:30~60bags/min
Belts conveyor	To connect the log saw cutting machine with packing machine

1. CS-180/2-14L Box Drawing Facial Tissue Machine Main features:
CS1802-/14L facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation . Can order steel to rubber embossing rolls,pneumatically separated. 2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving ,stepless speed additionustment ,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine
5.Make various products width as requirement .
6.Equipped with edge embossing unit to keep the two plies together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safety and easier to thread the web.
Main technical parameter:

Machine model	CS-180/2-14Lmm
Finished products unfolded size	180*210mm±2mm
Folding products size	90*(120-210)±2mm
Raw material width	400-2800mm
Raw material diameter	1100mm
Raw material core diameter	76.2mm
Out put (8 hours)	8000~10000Kg
Embossing unit	Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Power	7.5KW Main motor
	3.0KW(2set) Unwind motor
Vacuum suction unit	47KW Fan
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Dimension	8700X3500X7000mm
Weight	12~13T

2. Facial Tissue Auto Log Separator Under the condition of standard extraction number 130 and standard layer number 3,The efficiency can reach 8-10 logs per minute. When leaving the factory, the machine will be adjusted to 8 rolls/min,If there is any special requirement for speed, it should be informed in advance. After the speed is fully adjusted, the customer cannot raise or slow down the speed unilaterally,The related operation can only be completed with our assistance When changing specifications, if only the amounts of paper and the weight of paper are changed, but the packaging thickness of the paper is not changed, the number of paper can be set on the touch screen without adjusting the mechanical parameters. However, if the paper packaging thickness is changed, the related mechanical structure needs to be adjusted. The whole process takes about half an hour. The thickness of the paper that the standard machine can adapt is 50--110mm. If the thickness of the paper is less than 50mm or more than 110mm, it needs to be customized. The standard machine can accommodate a width of 75-110mm (or 150-220mm). If the width is less than 75 (or 150) or greater than 110 (or 220), it needs to be customized. When leaving the factory, all of the mechanical and electrical parameters in the case of customers no special requirements, all will according to the standard width to adjust (for example, the machine of 9 lines, is 1.8 meters in length, standard, then, all of the mechanical and electrical parameters in the case of customers no special requirements, all can adjust by the standard of 1.8 meters) if the customer wants to change the width of paper, for example by 1.8 m to 1.5 m, then the changes will be bigger, almost had to spend four hours. But When the range of 40mm changes (for example, the current width is 1.8 meters, so when the paper width changes between 1.84m and 1.76m), no adjustment is required. Paper separating deviation: +/-2draws Power Supply:AC380V Frequency:50HZ; Power:3KW; Air Pressure:0.6---0.8MPa; Gas Consumption:1.5m³/min; PLC,Servo Motor,Servo Driver,HMI are all Siemens brand. About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Workshop:
About the package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sale Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
