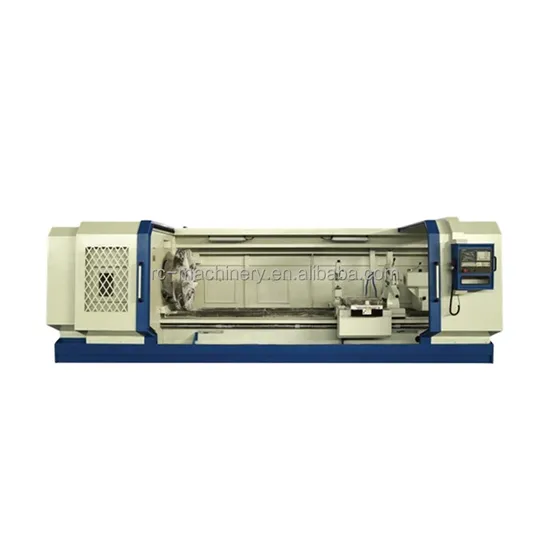

Oil Country CNC Pipe Thread Lathe Machine Drc Qk1343 Automatic Pipe Cutting Lathe with Hollow Chuck Large Spindle

Product Description

Oil Country CNC Pipe Thread Lathe Machine DRC QK1343 Automatic Pipe Cutting Lathe With Hollow Chuck Large Spindle Oil Country CNC Pipe Thread Lathe Machine DRC QK1343 Automatic Pipe Cutting Lathe With Hollow Chuck Large Spindle
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal and external taper surfaces, and planes, etc. in lathes. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration. Other departments deal with the machining of drill pipes, drill boats, and casings.
QK series CNC Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on. We are a professional manufacturer specialized in the cnc and conventional pipe threading lathe machine. CNC pipe threading lathe is a special model of CNC turning lathe ,mainly used in oil and gas field, machinery manufacturing, geological exploration, thread repair function and so on.
We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.
we can can absolutely ensure the casting quality after the United States imported equipment precision spectrometer analysis.
The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough. The guide way is through high-frequency quenching, the slide guide way joint SD compound soft belt. to make more wear-resisting and lower friction factor. The lead screw is the whole structure (not butt). The saddle is wider and thicker than before, the machine is running more stable. And the cutting ability is better. With the super audio quenching treatment ,the hardness of Body guide rail can reach above HRC55 degrees, it can keep the hardness high accurate, and prolong the wear resistance and service life.
The 3 boxes of lathe were processed by Taiwan's CNC boring and milling machine center. The other tools are processed by CNC lathe and machine center to ensure the precision of the box and tools.
The lathe bed we produced is all research and development by our own engineers. These all can greatly increased the rigidity and are helpful to widen and Thicken the dragging plate,
The large plate guide guide rail (X) is also go through the super audio quenching treatment, so it increased hardness and then could guarantee the service life of equipment more efficiently.

Model and specifications	QK1319	QK1327	QK1343
Guideway width	550 mm	755mm	755mm
Max.swing over bed	630mm	1000mm	1000mm
Max.swing over carriage	350mm	610mm	610mm
Hole through spindle	200mm	280mm	440mm
Max.processing Pipe diameter	196 mm	270mm	430mm
Max.workpiece length	1500mm/3000mm
Repeated positioning accuracy	±0.002	±0.002	±0.002
Power of main motor	11kw	18.5kw	22kw
Chuck	500 3-jaw	800 4-jaw	1000 4-jaw
