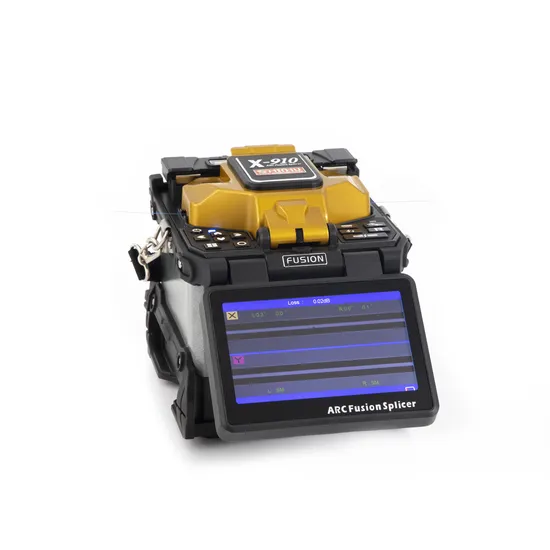

Shinho New Model X-910 Economical 6 Motors Core to Core Alignment Fiber Fusion Splicing Splicer

Product Description

Features: 6 motors accurate core to core alignmentIdentify fiber types(SM/MM) automatically6 seconds splicing & 18 seconds heatingAutomatic & real-time ARC calibrationReal-time heating temperature monitoringAnti-shock, anti vibration, dustproof &waterproofApply to 250um/0.9mm/2.0mm/3.0mm fibersWithout reflective-mirror design,easy to maintain
Operating Condition
Product Description

Model	X-910 Core Alignment Fusion Splicer
Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657)
Diameter of cladding	80 -150μm
Diameter of coating	160-3000μm
Typical splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss	> 60dB
Fibe cleaved length	5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Splicing program	40 groups
Operate mode	Automatic/Manual
Auto-heating	Available
Typical splicing time	6 seconds
Typical heating time	18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification	300X (X or Y view), 150X (X and Y view)
Display screen	2 CMOS cameras, 5.0 inch color LCD monitor
Records storage	8000 groups data and 100 groups image
Loss evaluation	Available
Tension test	>2.2N
Interface	GUI menu interface, easy for operation
Battery	5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hours
Power supply	Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V
Electrodes life	More than 5000 ARC discharges, can be replaced conveniently
Ternimal	USB2.0 port, for uploading splicer results and upgrading software
Operating conditions	Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -25ºC~+50ºC, Storage temperature -40ºC~+80ºC;Wind speed: Max 15m/s
Dimension	156mm(L) * 141mm(W) * 156mm(H) (including rubber armor)
Weight	2.45kg (including battery)

Packaging Details:
Carton Size: 53cm x31cm x34cm
Gross Weight: 9.5kg
Delivery Detail: in 2 days
Delivery leading period:
Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders
Shipment:
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.

After-sales Service:
We guarantee all our fusion splicers for 36 months from the date customers receive them. Other parts for six months.
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.
Company Information Shanghai Shinho Fiber Communication Co., Ltd is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.As a new manufacturer, our X-series optical fiber fusion splicers have independent IPR. Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects, broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc. Compared with world famous leading brands and other Chinese splicers, our splicers' fusion losses have reached world's advanced level, much better than all Chinese brands' fusion splicers. Based on years of experiences in optical communication fields, our aim is to provide you excellent fiber optic fusion splicers, and best after-sales service. Hoping we could establish business relations with your esteemed company very soon. contact us:
