High-Speed High Precision Dual Two Spindle CNC Metal Processing Machinery Machine Tool

Product Description

Elevate your metal processing capabilities with the High-Speed Dual Spindle CNC Metal Processing Machinery.
Product Description
Introducing our state-of-the-art Dual Spindle Steel Structure CNC Lathe, a masterpiece of modern engineering brought to you by Dongguan Luotuo Industrial Co., Ltd. This advanced CNC machine tool boasts two independent spindles, empowering you with unparalleled efficiency and precision in your machining operations. Widely acclaimed across diverse industries including aerospace, automotive, and textiles, our Dual Spindle CNC Lathe excels in delivering top-notch performance. With its remarkable high-speed capabilities and exceptional accuracy, it is meticulously designed to meet and exceed the stringent machining demands of these high-stakes sectors.
Product Parameters

Project	Name	specification	Unit
Process range	Max bed rotating diameter	Φ400	mm
	Maximum processing length	500	mm
	Maximum processing diameter (shafts)	Φ75 Φ45	mm
	Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2	X / Z / Y axis travel	500 / 600 / 100	mm
	X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
	Repetition accuracy X / Z / Y	±0.003	mm
	Position accuracy	±0.005	mm
Movement	X / Z / Y	30/30/28	mm
	X2 / Z2 / Y2	24/30/18	mm
Screwdriver	X / Z / Y	32/36/40	mm
	X2/Y2/Z2	32/33/25	mm
Rails	X / Z / Y	35/35/30	mm
	X2/Y2/Z2	30/35/25	mm
Turrets	Turrets	12T
	Turning tool specifications	25X25(rectangular)
	Bore cutter specification	Φ25 Φ32	mm
Spindle	Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
	Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
	Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System	Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
	X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
	X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
	Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension	Length/Width/Height	2700 X 1950 X 2050	mm
	Heavy	4.9	T

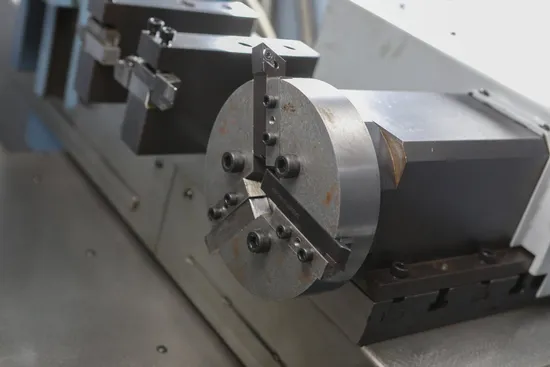

Detailed Photos
• Effortless Simultaneous Machining: Elevate your productivity with our Dual Spindle CNC Lathe, designed to machine two workpieces at the same time, significantly boosting machining efficiency and throughput.
• Unmatched Precision: Engineered for high-precision machining, our CNC lathe meets exacting standards for fine cutting requirements. Achieve impeccable internal and external precision, roundness, and coaxiality with ease.
• Versatile Multi-process Capabilities: This advanced machine completes a multitude of complex processing procedures simultaneously, handling radial and axial cutting, drilling, tapping, hobbing, scribing, and drawing with superior precision.
•Performance-Driven Precision Spindle: Experience high precision, stability, and performance with our expertly engineered spindle.
•Innovative Spindle Design: Crafted in Taiwan, our spindle uses a butterfly spring mechanism and a four-jaw broach for exceptional tool holding, ensuring a perfect match with the spindle's taper hole.
•Efficient Low Inertia Motor: Featuring a low inertia spindle motor for rapid acceleration, our machine enhances tapping speed and quality. With direct spindle drive and orientation function, enjoy seamless operation.
•Lead Screw
Precision and Reliability: Equipped with C3 grade precision screws across all three axes, our machine incorporates a pre-tensioning design to minimize temperature rise, ensuring exceptional repeat positioning accuracy.•
•Line Track
High-Load, High-Rigidity Rails: Our machine's three axes utilize P-grade roller type rails, providing high rigidity and load capacity in four directions through dynamic contact between rolling elements and sliding rails.
Anoher Advantages
Exemplary Processing Conditions and Optimal Production Environment
Our facility is equipped with state-of-the-art imported machinery, including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines. These advanced tools ensure impeccable accuracy of workpieces, significantly enhance assembly precision, and provide long-lasting durability.
Cutting-Edge Detection Methods We employ laser positioning accuracy tests and optimal corrections adhering to the stringent German VDI3411 inspection standards, conducting these tests five times each for unparalleled precision.
Every machine tool undergoes rigorous processing tests before it leaves the factory, ensuring it meets actual processing demands and the highest accuracy requirements.
Product sample
• Our state-of-the-art CNC machine center seamlessly integrates milling, drilling, and tapping functionalities for unparalleled performance.
• Achieve flawless CNC machining for an array of metal profiles, including aluminum, steel, copper, and even non-metal materials.
• The CNC Vertical Machine tools are pivotal in various industries, including 3C electronics, rail transportation, aerospace, and liner module guide rail applications.• Expansive usage in diverse sectors and more.
Packaging & Shipping
Professional Team
FAQ
1. What's the Payment Terms?
A: We accept T/T payments, with a 40% initial deposit upon order confirmation, followed by a 60% balance payment before shipment.
2. What are your trade terms?
A: We accommodate various trade terms including FOB, CFR, and CIF, ensuring flexibility to meet your needs.
3. When is the delivery time?
A: For standard machines, we aim to have them ready within 30 days. For specialized machines, the timeline may be slightly longer. You can place your order based on our provided delivery and shipping schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we offer a comprehensive one-year warranty on all our machines.
5. What is the packaging of the machines?
A: Our machines are securely packed in standard wooden cases to ensure safe transit.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we'll recommend the best model for you. Alternatively, you can select the exact model you prefer.
You can also send us your product drawings, and we will help you choose the most suitable machines based on your requirements.
