Advanced Rebar Locator and Concrete Cover Meter

Product Description

Product Description
Product Usage and Features

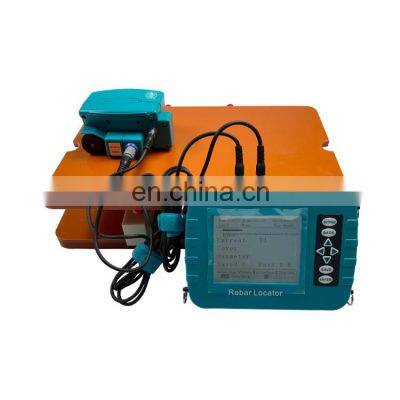

GTJ-RBL+ Concrete Cover Meter Rebar Detector
PRODUCT OVERVIEW:
The Concrete Cover Meter Rebar Detector is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars from the concrete surface, detect the thickness of the concrete and the diameter of the steel bars; ln addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents.
PRODUCT FEATURES:

1.	Upgraded wireless cloud transmission function.
2.	Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
3.	Built-in large capacity memory card, storage capacity upgrade.
4.	USB transmission simulates the host computer as a U disk and reads data as easily as a U disk.
5.	Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth.
6.	Manual calibration.
7.	Professional data analysis software, so that your post-processing data and report generation work can be easily completed.

Technical Parameters

Model	GTJ-RBL	GTJ-RBL+
Setting Scope of rebar dia.	φ6mm~φ50mm	φ6mm~φ50mm
Setting scope of concrete cover	6~200mm	6~200mm
First range	6mm~90mm	6mm~90mm
Second range	6mm~200mm	6mm~200mm
Max. allowable errors of the Protective Layer Thickness	1-80mm  (±1mm)	1-80mm (±1mm)
		81~119mm  (±2mm)	81~119mm (±2mm)
		121~200mm  (±4mm)	121~200mm (±4mm)
Estimation Scope of rebar dia.	φ6mm~φ32mm	φ6mm~φ32mm
Section grid	Not support	Graphics+Digital display
Max. errors of Diameter indication	±1 specification	±1 specification
Storage capacity	2000 Components *1000 Measuring points	2000 Components *1000 Measuring points
Data transmission mode	USB; Wireless cloud transmission (potional)	USB; Wireless cloud transmission (potional)
Power suppy	Lithium battery over 12 hours	Lithium battery over 12 hours
Host parameters	Waterproof parameters:IP65 Screen size:5 inches Resolving:320*240 Volume:195*140*45mm Weight:0.8kg	Waterproof parameters:IP65 Screen size:5 inches  Resolving:320*240 Volume:195*140*45mm  Weight:0.8kg
Working environment	Temperature: -10℃ ~ +40℃ Humidity： 90%RH	Temperature: -10℃ ~ +40℃ Humidity： 90%RH

Detailed Images
Functions:
1. measure the diameter of the rebars on the concrete surface;
2. measures the thickness of concrete cover over steel reinforcement bars and metal pipes;
3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.
Company Introduction
Cangzhou Lovely Technology Co.,Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Welcome to visit us for better business cooperation!
