4-48 Core Om3 Muti Purpose LSZH PVC Hatrel Break-out Distribution Indoor FTTH Fiber Optical Cable

Product Description

4-48 Core OM3 Muti purpose LSZH PVC HATREL break-out distribution indoor ftth fiber optical cable Muti Purpose Break-out Cable(BOC)

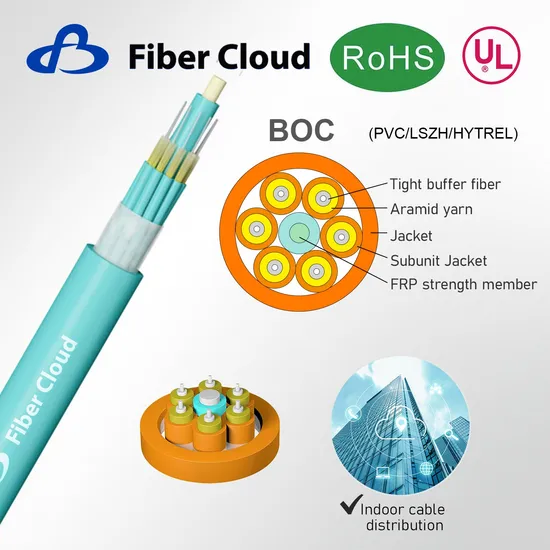

The BOC multi-purpose optical cable uses a single-core optical cable (Φ900µm tight-buffered optical fiber, aramid reinforcement element) as a sub-unit and a non-metallic central strengthening core. The optical cable sub-units are twisted on the central strengthening core to form a cable core, and a layer of polychloride is extruded on the outermost layer. Made of vinyl (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
• Layer-stranded optical cable structure, non-metallic central strengthening core allows the optical cable to withstand greater pulling force
• The outer protective material is corrosion-resistant, waterproof, UV-proof, flame-retardant, and environmentally friendly.
• Aramid reinforcement elements give the optical cable excellent tensile properties
• Indoor integrated wiring
• Fiber optic cabling as the backbone of the building
Product Parameters
Technical Characteristics
Storage and use temperature: -40ºC to +120ºC.

Cable code	Cable Diameter	Cable Weight(Ref)		Tensile Strength	Crush Resistance	Bending Radius
	(mm)	(kg/km)		Long/Short Term	Long/Short Term	Dynamic/Static
		PVC Jacket	LSZH Jacket	(N)	(N/100mm)	(mm)
BOC-04Xn	7.4±0.5	50	56	130/440	300/1000	20D/10D
BOC-06Xn	8.4±0.5	66	74	200/660	300/1000	20D/10D
BOC-08Xn	9.8±0.5	91	101	200/660	300/1000	20D/10D
BOC-12Xn	12.4±0.5	140	155	200/660	300/1000	20D/10D
BOC-18Xn	12.4±0.5	140	155	400/1320	300/1000	20D/10D
BOC-24Xn	14.4±0.5	181	201	400/1320	300/1000	20D/10D
BOC-36Xn	16.4±0.5	208	255	400/1320	300/1000	20D/10D
BOC-48Xn	19±0.5	280	344	400/1320	300/1000	20D/10D

Optical properties

Fiber Type	attenuation				Overfilled Bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bending radius
Options	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
	Typical value	maximum value	Typical value	maximum value
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
