Full Automati High Speed PE Poly Plastic Nylon Pbat PLA Biodegradable Mini Bag Film Blowing Machine Mini Film Extruder Mini Film Machine Plastic Film Machine

Product Description

the Mini type film blowing machines offer several advantages over other types of film blowing machines, especially for businesses that require a low-volume production of plastic films. Compare to normal film blowing machine,it has following advantage:
Compact size: Mini type film blowing extruder are designed to be smaller and more compact than other film blowing machines, which makes them easy to install and use in smaller spaces. They can be easily moved around and stored, which is especially useful for businesses with limited space.
Low energy consumption: Mini type blown film machine consume less energy than larger machines, which can lead to significant cost savings over time. They are also environmentally friendly and reduce carbon emissions, making them a sustainable choice for businesses.
User-friendly operation: Mini type film extruder are easy to operate, and they require minimal training to use. They typically come with intuitive control panels, which allow operators to adjust the temperature, speed, and other settings with ease.
Versatility: Despite their smaller size, mini type film blowing machines can produce a wide range of plastic films, sheets, and bags. They can handle various materials, including LDPE, HDPE, LLDPE, and produce films with different thicknesses and widths.
So this machine is a good choice for customer who has limited factory space
Here is the machine specifications for reference.

Model	XG-MNA50
Suitable material	LDPE, HDPE, LLDPE mix or alone
Film width	100-500mm
Film thickness	0.006mm-0.10mm(if you have special request please clarify)
Max.Output capacity(kg/hr)	40kg/hr for HDPE 50kg/hr for LDPE
Screw diameter(mm)	50mm
Screw L/D Ratio:	30:1-32:1
Driving motor(kw)	15
Screw material	Full bimetallic
Barrel material	38CRMOALA
Cylinder cooling	250wx2
Temperature control(zone)	5
Die head size(mm)	60/80mm
Air blower(kw)	2.2
Roller width(mm)	600
Take up speed(m/min)	10-80
Take up motor(kw)	1.5
Winding motor(N/M)	6
Winding speed(m/min)	10-60

Production procedure
Sample film

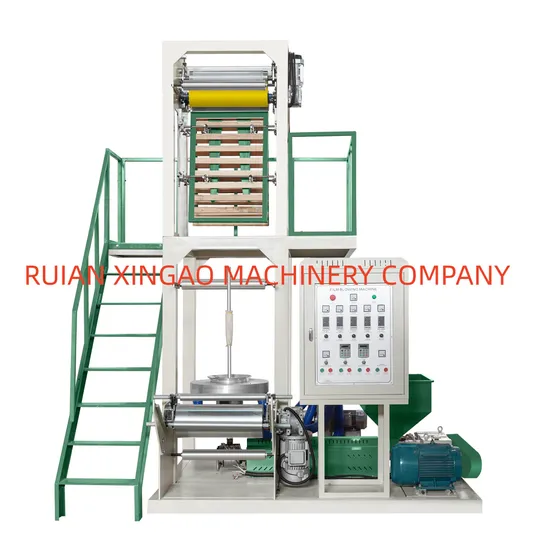

Machine outlook
Machine rewinding part
Machine take up unit
Machine extruder part
Machine package and shipment
Our service Team
Factory layout
FAQ
