Economic High Speed Paper Board Making Machine

Product Description

Product parameters

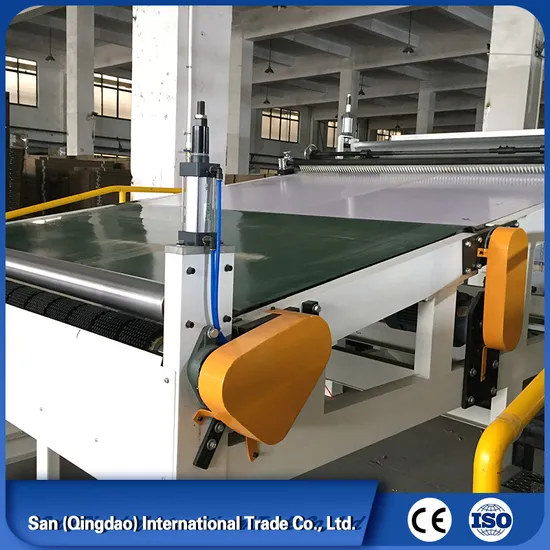

>>>>. Honeycomb paper lamination machine is our self-developed latest honeycomb paper panel making machine.The line is high-automated,less labored,high efficient and least waste.It's processed from ready honeycomb paper core to the finished honeycomb paper panel.It's producing honeycomb panels continuously for the whole process.
>>>>. The basic material is corrugated paper,kraft paper or tea-color paper and the glue is white latex.

Technical specification:
Model	FBJD-1800
Max.panel width	1800mm
Min.panel width	500mm
Panel thickness	6-100mm
Production speed	38m, producing speed 25-30m/min
Heating type	Steam heating,hot air circulation
Power supply	120kw,380v,50hz
Tatal length	69m
Air supply	≥0.5m³,air pressure≥8kg/cm2
Applicable paper	180-400gsm corrugated medium or kraft paper

Product display
Production Process
Certifications
Exhibition
Company information
Packing & Delivery
FAQ:
Q1: Are you a factory or a trade company? You manufacture the machines all by yourself?
R: We are a factory in Shandong. Yes, we design and manufacture the machines all by ourselves.
Q2: Which machines you mainly manufacture?
R: Currently, we mainly manufacture Honeycomb Core Making Line, Honeycomb Board Laminator Line, Honeycomb Board Slitting Machine, Honeycomb Board Slice Machine, Inverted Corrugated Board Making Line, Paper Slitter Rewinders Machine, Edgeboard Line, Round Corner Making Machine and Hole Making Machine etc. We are adjusting and improving ourselves according to the market demand.
Q3: Do you have videos to show how the machines operate? Can I pay a visit to your factory?
R: Yes, we have videos shot ourselves and can guarantee the truth of it. Of course you are welcomed to visit our factory and see how the machine operates by yourself any time. If you need us to pick you up from the airport or hotel, please kindly tell your schedule in advance.
