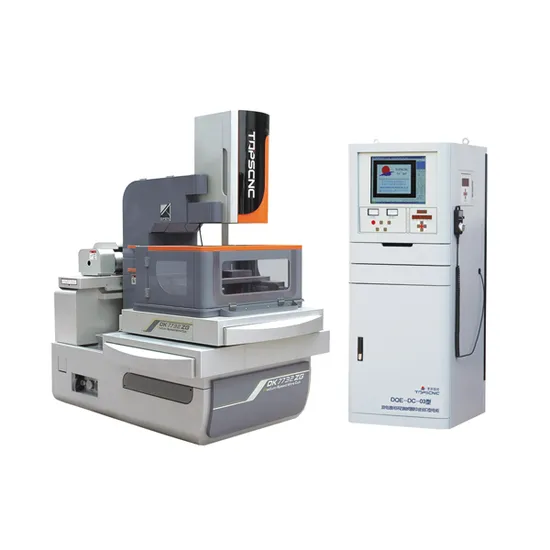

China Low Price Automatic EDM Molybdenum Wire Cutting Machine
| US$27,000.00-38,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
DK7740ZG
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Travel
320*400mm
Max. Thickness of Workpiece
300mm
Max. Workpiece Dimension
500*800mm
Machining Precision
0.01mm
Min. Control Pace
0.001
Transport Package
to Be Packed in Wooden Cases,Suitable for Export.
Specification
1800*1300*2030kg
Trademark
TOPSCNC
Origin
Taizhou, Jiangsu, China
HS Code
8456301090
Production Capacity
100sets/Per Month
Packaging & Delivery
Package Size
2000.00cm * 1500.00cm * 2400.00cm
Package Gross Weight
2600.000kg
Product Description
Technique parameters| Technical parameter | Unit | DK7740ZG |
| Table size (W*D) | mm | 840×540 |
| Table travel (X*Y) | mm | 500×400 |
| Max.workpiece dimension | mm | 900x600 |
| Table size(U*V) | mm | ±30×±30 |
| Max. workpiece weight | kg | 1000 |
| Max. thickness of workpiece | mm | 300 |
| Max. taper angle/workpiece thickness | ±6°/80mm | |
| Molybdenum Dia. | mm | φ0.15~φ0.25mm (φ0.18mm recommend) |
| Max. wire feed rate | m/sec | 1~11.4m/sec frequency adjustable |
| Machining precision | mm | ≤0.01 |
| Max. machining speed | mm2/min | ≥200 |
| Surface roughness | μm | one time Ra≤2.5, three times Ra≤1.0 five times Ra≤0.8 |
| Linkage control axis number | X,Y,U,V | |
| Max.trip wire cylinder | m | 250 |
| Z-axis control | electronic control | |
| Motor type | X,Y,U,V all servo motor | |
| Axis controlled | 4 axis simultaneous | |
| Min. control pace | mm | 0.001 |
| Power supply | 380VAC/50Hz | |
| Max. working current | A | 12 |
| Power consumption | Kw | 1.5 |
| Work liquid | JR3A | |
| Water tank | L | 90 |
| Filtering mode | Paper filter/Italy pump | |
| Machine weight | kg | 2600 |
| Machine dimension | mm | 1900×1400×2060 |
| Size package | mm | 2000×1500×2400 |
| The noise | db | ≤70 |
Product show
Why choose us
Service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact us
Company: Jiangsu Dongqing CNC Machine Tool Co. Ltd.Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China Web: topscnc.en.made-in-china.com
