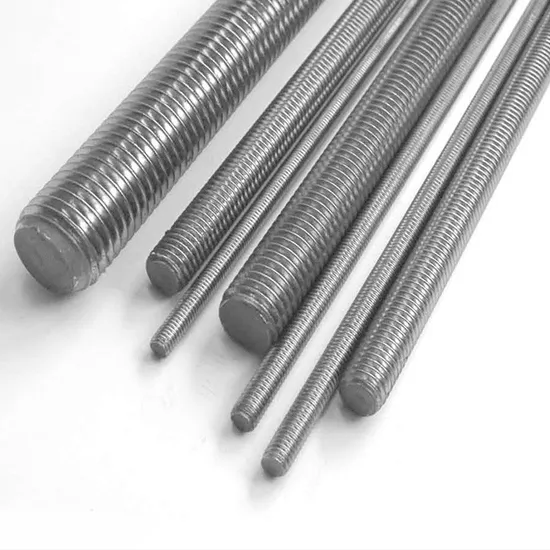

DIN 975 ASTM B348 Gr. 5 Tianium Threaded Rod for Chemical Use

DIN 975 ASTM B348 Gr. 5 Tianium Threaded Rod for Chemical Use

US$0.10-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
Tianium Threaded Rod
Connection
Common Bolt
Head Style
Round
Standard
DIN, ANSI
Grade
12.9
Application
Machinery, Chemical Industry, Environmental, Building
Finish
Polishing
Model Numbe
Titanium Stud
Cerficication
En10204-3.1b
Condition
Annealed
Surface
Pickled, Polished
Transport Package
Wooden Case/Carton Box
Specification
M2~M64, #10~21/2
Trademark
KING TITANIUM
Origin
China
HS Code
8108909000
Production Capacity
500 Tons /Year

Product Description


DIN975 Gr.5 Titanium Rod Bolt For Chemical Use
AVAILABLE SIZES
M2~M64,#10~21/2
STANDARD
DIN 912, DIN913, DIN916, DIN 933, DIN 934, DIN963, DIN 795, DIN 796, DIN 7991, DIN 6921, ISO 7380, ISO 7984, ASME B18.2.2, ASTM B18.2.1, ASME B18.3, etc…
Type
bolts, washers, nuts, thread rods
EXAMPLE APPLICATIONS
Bicycle,Motorcycle,MedicalIndustry,Surgicalimplants,Chemicalindustry,Aerospace,Spaceflight,Airplane,Ship,Auto,Cars,Wheelchair,Sports,Military etc.
STANDARD CHEMICAL COMPOSITION (weight %, max or range) MECHANICAL PROPERTIES (min)
ASTM UNS
No		 N C H Fe O Al V Pd Mo Ni Tensile Yield El. Red.
Mpa Mpa % %
GR 1 R50250 0.03 0.08 0.015 0.2 0.18 240 138 24 30
GR 2 R50400 0.03 0.08 0.015 0.3 0.25 345 275 20 30
GR 3 R50550 0.05 0.08 0.015 0.3 0.35 450 380 18 30
GR 4 R50700 0.05 0.08 0.015 0.5 0.4 550 483 15 25
GR 5 R56400 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5 895 828 10 25
GR 7 R52400 0.03 0.08 0.015 0.3 0.25 0.12-0.25 345 275 20 30
GR 9 R56320 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 620 483 15 25
GR 12 R53400 0.03 0.08 0.015 0.3 0.25 0.2-0.4 0.6-0.9 483 345 18 25
GR 23 R56401 0.03 0.08 0.0125 0.25 0.13 5.5-6.5 3.5-4.5 828 759 10 15
TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE UNS NO. WIRE BAR SHEET PLATE TUBE PIPE FITTING FORGING FASTENER
Ti Grade 1 R50250 √ √ √ √ √ √ X √ √
Ti Grade 2 R50400 √ √ √ √ √ √ √ √ √
Ti Grade 3 R50550 √ √ √ √ X X X √ √
Ti Grade 4 R50700 √ √ √ √ X X X √ √
Ti Grade 5 (6Al 4V) R56400 √ √ √ √ X X X √ √
Ti Grade 7 (0.2Pd) R52400 √ √ √ √ √ √ √ √ √
Ti Grade 9 (3Al 2.5V) R56320 √ √ √ √ √ X X √ √
Ti Grade 11 R52250 √ √ √ √ √ √ X √ √
Ti Grade 12 (0.3Mo 0.8Ni) R53400 √ √ √ √ √ √ √ √ √
Ti Grade 17 R52252 X √ √ √ √ √ X √ √
Ti Grade 23 (6Al 4V Eli) R56401 √ √ √ √ X X X √ √
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.
