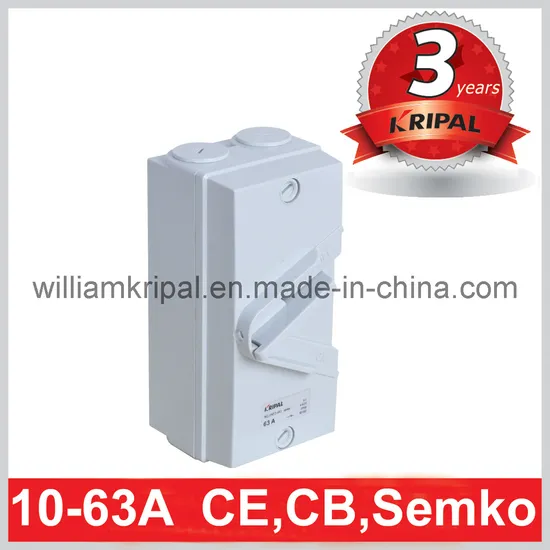

IP66 63A 4p Isolating Switch / Isolator Switch
| US$4.19 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
UKF2-463
Color
Ral 7035
Warranty
3 Years
Materials
PC, Copper, Silver
Transport Package
36 PCS / Carton
Specification
IEC 60947-3 CE
Trademark
KRIPAL or OEM
Origin
China
HS Code
85365000
Production Capacity
30000 PCS / Month
Product Description
Product Description Isolating Switch / Isolator switch
Three type: UKF1, UKF2 UKF3, the differences are the outlook and the function are the same.
Pole: 1P, 2P, 3P, 4P
Rated Current: 10A, 20A, 35A, 63A
UKF4 mini isolator switch:
Pole: 1P, 2P
Rated current: 10A, 16A, 20A, 35A
1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
5. Samples provided freely.
| Type | UKF1-120 | UKF1-135 | UKF1-163 | UKF1-220 | UKF1-235 | UKF1-263 | UKF1-320 | UKF1-335 | UKF1-363 | UKF1-420 | UKF1-435 | UKF1-463 | |
| UKF2-120 | UKF2-135 | UKF2-163 | UKF2-220 | UKF2-235 | UKF2-263 | UKF2-320 | UKF2-335 | UKF2-363 | UKF2-420 | UKF2-435 | UKF2-463 | ||
| UKF3-120 | UKF3-135 | UKF3-163 | UKF3-220 | UKF3-235 | UKF3-263 | UKF3-320 | UKF3-335 | UKF3-363 | UKF3-420 | UKF3-435 | UKF3-463 | ||
| Insulation voltageUi(50Hz) | 250 | 250 | 250 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | |
| Working VoltageUe(50Hz) | 250 | 250 | 250 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | |
| Power frequency(KV) voltage | 1.5 | 1.5 | 2.5 | 1.5 | 1.5 | 2.5 | 1.5 | 1.5 | 2.5 | 1.5 | 1.5 | 2.5 | |
| Rated irregular load(A) | 20 | 35 | 63 | 20 | 35 | 63 | 20 | 35 | 63 | 20 | 35 | 63 | |
| Rateduninterruptedworking system: | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| Number of poles | 1P | 1P | 1P | 2P | 2P | 2P | 3P | 3P | 3P | 4P | 4P | 4P | |
| Singlecablesectioncross-strand | Min | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max | 16 | 16 | 25 | 16 | 16 | 25 | 16 | 16 | 25 | 16 | 16 | 25 | |
| Cablesectionmany cross-shares | Min | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max | 10 | 10 | 16 | 10 | 10 | 16 | 10 | 10 | 16 | 10 | 10 | 16 | |
| EN60947-3-1 | 250 | 250 | 415 | 415 | 415 | 415 | 415 | 415 | 415 | 415 | 415 | 415 | |
| Use of categoriesAC23 | 20 | 35 | 63 | 20 | 35 | 63 | 20 | 35 | 63 | 20 | 35 | 63 | |
| Short-term rated(A)1/Secvoltage | 240 | 384 | 756 | 240 | 384 | 756 | 240 | 384 | 756 | 240 | 384 | 756 | |
| Breaking capacity | 0.5 | 0.5 | 1 | 0.5 | 0.5 | 1 | 0.5 | 0.5 | 1 | 0.5 | 0.5 | 1 | |
Surface Mount Kripal 40A Main isolator switch 3 single phase changeover switch 4p padlocked switch
Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development. With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of "Famous Export Brand". 20A isolating switch
gear selector switch
