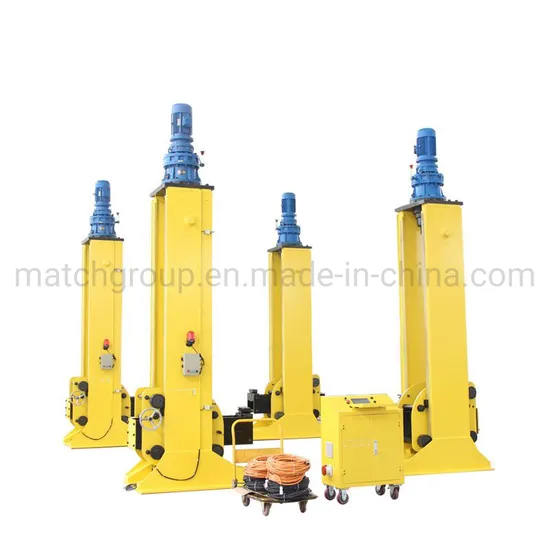

30ton Cheap Mobile Railway Jack Stands Lifting Jack System for Locomotive
| US$9,000.00-11,000.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
30Ton
Type
Hydraulic Jack
Structure
Hydraulic Jack
Capacity (Load)
31-40T
Power Source
Electric
Max Height
>400mm
Certification
EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Voltage
380V/50Hz
Motor Power
5.5kw*4
Stroke
0-1600mm
Min Ground Clearance
600mm
Speed
265mm/Min
Weight
1800kg*4
Transport Package
Full Container
Specification
1830*1000*3860mm
Trademark
Match
Origin
Shandong, China
Production Capacity
1sets/Week
Product Description
High Efficiency 30Ton Mobile Lifting Jack for LocomotiveFeatures: 1.Including transmission,frame, bracket, moving frame, synchronous control device, etc.
2.Structure is simple, the use of production less costs of production and with high efficiency and light weight;
3.Easy to operate, usually fixed in the station, can also be moved, using safely;
4.Mainly using gear transmission and screw drive transmission, low falure rate, easy maintenance;
5.Four sets as simultaneous operation group can autmaicaly control the synchronization upgrade to avoid tlting.Product Parameter
| Model | Single lifting capacity | lifting speed (mm/min) | min.height of support head(mm) | max.stroke of support head(mm) | horizontal extended distance of support head(mm) | synchronous control precision(mm) | bracket bearing surfaces of 4*lifting jacks(mm) | bracket bearing surfaces of 8*lifting jacks(mm) | tilt angle of support head(°) | sound(measure from 3meter distance)(db) | installation type | service life(year) |
| MT-JCJ-30 | 30 | 265 | 600 | ≥1600 | 0-500 | ≤12 | ≤2 | ≤2 | 2--3 | ≤70 | Mobile type | 30 |
