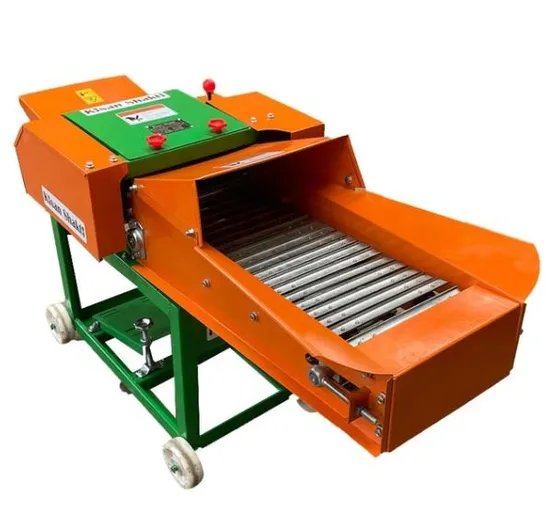

Weiyan Wy-9QS-3 Factory High Capacity 3.8 Ton/H Capacity Chaff Cutter Kneading Grass Chopper Machine with Chain Conveyor Belt

Product Description

Product Description
Weiyan 3.8ton/h High Capacity Agricultural Use Silage Mini Chaff Cutter Machine Forage Chopper for Animal Feed Hay Cutter Factory Hot Sale
Brand Name:Weiyan
Type:Chaff Cutter
Dimension(L*W*H):155*55*79cm
Weight:86kg
Certification:ISO9001,SGS,CCC
After-sales Service Provided:Video technical support, Online support
Key Selling Points:High Productivity
Marketing Type:Hot Product 2021
Core Components:Gear, Gearbox, Motor, Bearing, Engine
Product name: Popular Selling Mini Chaff Cutter Grass Chopper Machine
Feature:High efficience, good quality, longer working life
Material of machine:Iron Blade: 6pcs manganese steel 6mm,220*70*6mm thickness
Color:Clients' Requirement
Motor choice:Electric motor
Motor power:5.5KW
Motor weight:49.2kg
Motor choice:Electric motor,or gasoline engine
Applicable objects:Ducks, rabbits, cattle, sheep, pigs, horses,etc.



Packaging & Shipping

1)Packaging:
Usually package : Carton package.
Custom package : If you want, we can custom Wooen box and Iron box, it needs extra fees.
2)Shipping:
It is recommended to ship by sea or LCL by container or land transpotation.

Installation Instructions
1. First erect the host with the discharge port facing down
2. Put the high H-shaped rack into the mainframe and fasten the screws (Note: These 4 screws do not need to be tightened, just take the screws).
3. Then go to the lower frame, same as step 2, do not tighten the screws and put on the nuts.
4. Go up the motor crossbar, go up the lower one first, and fasten the screws, remember not to tighten the screws, just take them well
5. Move the casters up, use cylindrical pins to push the wheels from the outside in, and put them on the frame, and then lock them with cotter pins to prevent the wheels from running out.
6. Right the installed machine and place the machine on a flat ground. At this time, when it is stable, then lock the 8 screws on the main unit and push the machine without shaking.
7. Install the side plate of the conveyor belt, pay attention to the difference between the left and right, don't install it upside down, install according to the picture.
8. Install the conveyor belt unpowered roller, pay attention to put a M10 gasket inside the conveyor belt roller, remember, if it is not put, once the screws are tightened, the conveyor belt roller will not rotate.
9.Upper conveyor belt tightness adjustment screw.
10. Install the conveyor belt feeding platform, fixed with a screw on both sides.
11. Install the conveyor belt feed protection plate, pay attention to the protection plate is placed in the feed roller, align the screw holes, and install the screws.
12. Install the discharge adjustment baffle, which should be as long as cut. There is no need to install it here. The baffle should be lowered, and the punching should be fine, but the speed of the grass should be slow.
13. Install the protective cover on the right side. A double-head screw is needed here. First put it on the host, and then put the nut on the protective cover. Check whether the protective cover is stuck to the drive pulley, and if there is a gap, whether it touches the pulley. But just tighten the screws.
14. Install the motor, pay attention to the rotation of the motor, the machine needs to rotate clockwise, adjust the motor wheel and the spindle pulley to be perpendicular to a horizontal line, pay attention to the belt tightness.
15. Install the protective cover, complete the assembly successfully, clean the inside of the machine, test the rotation of the motor and make sure that the machine is running correctly, then it can be powered on.
16. To install the bucket, put the large partition on the top and the small partition on the bottom. Align the screw holes and fix them with screws.

Company Profile
Hunan Weiyan Machinery Co.,ltd is one of the professional manufacturers with more than 5,000 square meters plant and we mainly produce Grass Chaff Cutter,Feed Pellet Machine, Corn Sheller, Rice Mill and other algricultural machineries over 15 years in Shuangfeng County,Loudi,Hunan Provice,China.
For decades,WEIYAN has already accumulated rich experience on small agricultural machines for various materials which have been widely taken in both domestic and oversea markets. WEIYAN always concentrate on the research and innovation of the agricultural machinery in the past years and keep developing the high quality and user-friendly machines with our own professional R&D experts for various agricultural applications. With our strong sales team and perfect after-sale supports, WEIYAN has been won well reputation and great trust from our customers from all over the world.

After Sales Service
1.One year warranty except the wearing parts.2.Detailed English User Manual will be equiped with the machine.3.Broken parts of the quality problem(except the wearing parts) will be sent free in next order.4.Timely respond to customer's technical problem.5.New products update for customer reference.
FAQ
Q: What is the MOQ for your Straw Cutter Machine?
A: Our MOQ are 5 sets. And any order quantities are high appreciated.

Q:Are you a factory or trading company? A:We are a manufacture factory with self-supported export right.

Q:How is the quality of the machine?
A: We have been in this field for many years and guarantee supply high quality machine for you. Providing high quality products is always our number one policy.

Q: Could you provide us a better price?
A:Of course, we can provide you with an accurate quotation based on your specific requirement and order volume.
Q: What is the package for goods?
A:Normal package is strong carton package,if need wooden cases,please info us to add costs.

Q:Could you provide OEM&ODM service or custom our logo?
A:Yes! We can custom your logo(Please authorize to us) and our professional designers are capable to design your products based on your requirements of ODM&OEM orders.

Q:What payment do you accept?
A:We accept T/T,Western Union,Paypal,L/C,etc.Normally you need pay 30%deposit in advanced+70% balanced before shipping.
