M618 Manual Surface Grinding Machine

Product Description

M618 Manual Surface Grinding Machine

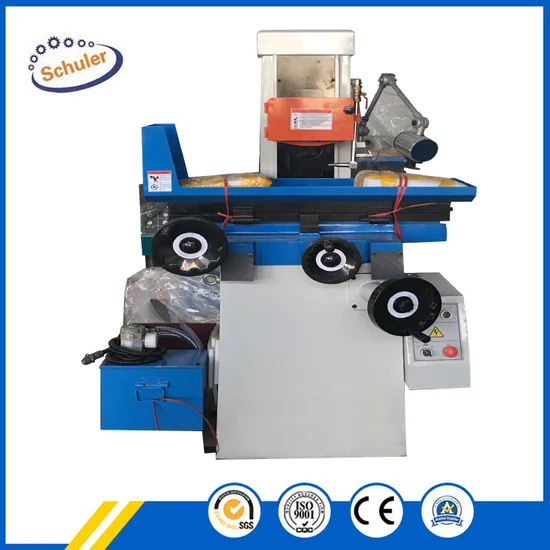

Product Picture:
Main Features:
The machine can grind various planes and complex molding surfaces. It is suitable for grinding without motorized feed. The spindle adopts P4 precision rolling bearing and labyrinth seal. It has good waterproof and dustproof performance, stable movement and high precision. The ball steel guide rail is used longitudinally, the operation is light and flexible, and the column adopts a large-span guide rail, which has good rigidity and high stability. The whole machine is manually lubricated by a manual oil pump.
Technical Parameters:

Model			Unit	M618
Workbench	Table size (L × W )		mm	450X150
	Front and rear travel		mm	178
	Left and right travel		mm	483
	T-slot (number of slots × slot width)		mm	1×14
Grinding wheel	Max.distance from spindle center to table		mm	360
	Vertical feed handwheel feed	per revolution	mm	1.25
		Hand wheel	mm	0.01
	Feeding handwheel before after	per revolution	mm	2.5
		Hand wheel	mm	0.01
	Wheel speed		r/min	2850
	Wheel size (OD × ID× W)		mm	Φ180×13×Φ31.75
Working accuracy	Parallelism		mm	300∶0.01
	Surface roughness		μm	Ra0.32
Machine weight	N/W		kg	680
	G/W		kg	730
Total motor power			kw	1.14
Grinding wheel motor power			kw	1.1
Dimensions (L×W×H)			mm	1550×1100×1680
Box size(L×W×H)			mm	1600×1100×1800

Product Details:
Grinding Machine Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
