FM UL Stainless Steel 304 316 Different Types Braided Fire Fighting System Flexible Hose

Product Description

Factory tour Fluid Tech Group is a professional manufacturer of pipe fittings in China. All products are designed, manufactured and tested in strict accordance with DIN, BS, ISO, ANSI, API and JIS standards.
We focus on the fire protection system for more than 10 years. Until now, we can offer one-stop service to our client who are specialized in fire protection system. Our products include the GI fittings, BMI fittings, Grooved fittings, fire valves, flexible hose, sprinkler, pipe hangers and so on. All items are FM approved and UL listed which are required in fire protection system. At present, our products are exported to North America, Europe, Central and South America, Southeast Asia, Middle East and Africa markets, and the products are very popular.
Detailed Photos

Refer No.	Description	Material	No. of each set
1	Corrugated tube braid&collar-rings	SS 304	1
2	Discharge nipple(elbow)	Galv.Steel ASTM 1020	1
3	Inlet nipple	Galv.Steel ASTM 1020	1
4	Hexagon slip nut	Galv.Steel ASTM 1020	2
5	Gasket	EPDM	2
6	Isolation ring	Nylon 66	2
7	Center bracket	Galv.Steel	1
8	Side bracket	Galv.Steel	2
9	Square bar	Galv.Steel	1
10	Bolt&screws	Galv.Steel	1 set

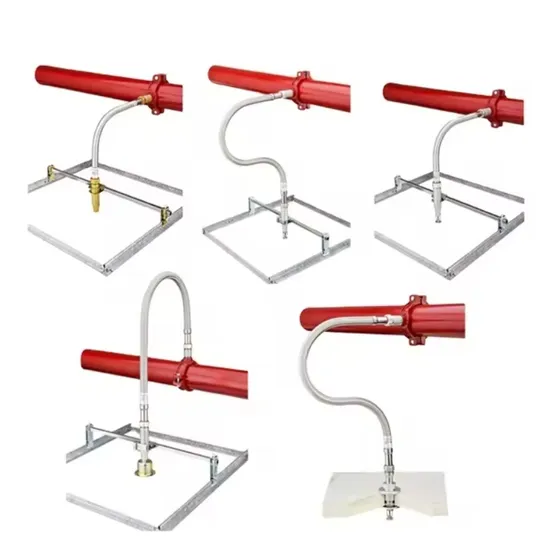

Different types

Flexible hose		cULus listing data
Model	Sprinkler thread size	Max.allow Sprinkler K-factor	Max. no. of 90° bends	Min.bending radius	EQL of 33.7mm/1" SCH40 Pipe
	DN(in.)	Metric/Imprl.	n x 90°	mm /inch	meters /feet
RF-100-700	15(1/2")	80/5.6	2	100	8.2/27.0
	20(3/4")	202/14.0		3.9	8.5/28.0
RF-100-1000	15(1/2")	80/5.6	3	100	11.3/37.0
	20(3/4")	202/14.0		3.9	12.5/41.0
RF-100-1200	15(1/2")	80/5.6	3	100	14.9/49.0
	20(3/4")	202/14.0		3.9	14.3/47.0
RF-100-1500	15(1/2")	80/5.6	3	100	19.2/63.0
	20(3/4")	202/14.0		3.9	19.5/64.0
RF-100-1800	15(1/2")	80/5.6	4	100	23.8/78.0
	20(3/4")	202/14.0		3.9	24.4/80.0

Flexible hose		cULus listing data
Model	Sprinkler thread size	Max.allow Sprinkler K-factor	Max. no. of 90° bends	Min.bending radius	EQL of 33.7mm/1" SCH40 Pipe
	DN(in.)	Metric/Imprl.	n x 90°	mm /inch	meters /feet
RF-200-700	15(1/2")	115/8.0	1	250	8.1/26.7
	20(3/4")	202/14.0		9.8	6.5/21.5
RF-200-1000	15(1/2")	115/8.0	2	250	12.9/42.6
	20(3/4")	202/14.0		9.8	12.0/39.6
RF-200-1200	15(1/2")	115/8.0	3	250	16.2/53.2
	20(3/4")	202/14.0		9.8	15.7/51.6
RF-200-1500	15(1/2")	115/8.0	4	250	20.6/67.8
	20(3/4")	202/14.0		9.8	19.3/63.5
RF-200-1800	15(1/2")	115/8.0	4	250	25.1/82.4
	20(3/4")	202/14.0		9.8	22.9/75.4

Stainless Unbraided Hose with Straight Nipple(Unbraided flexible sprinklers hose & fittings) assembly consists of an unbraided corrugated hose, inlet steel fitting to connect the branch line, outlet fitting to connect the sprinklers, and bracket assembly to mount on the ceiling.The fire hose is composed of stainless steel bellows hose, joint fittings and fixed bracket groups, which provides an innovative simple and efficient installation method for the end sprinkler of the fire sprinkler system, replacing the traditional installation method of short pipe sleeve + steel parts.

accessories Our Advantages
Safe & Reliable
All the parts fexible hoses are manufactured in corrosion resistant and high-powered stainless steel with 100% leak tested prior to leaving the factory and the environmental temperature resistance being as high as 107ºC/225ºF
Easy and Quick installation
No special tools are required and It only needs the simple use of wrench, screw driver and pipe sealing tape, etc, in the installation with the minimal amount of time. The fexibility hose can be adjusted based on the installation space and can also be combined with 90' elbow, which allows hose to be fxed in limited installation space.
Economizing on cost With the unique connection mode of fexible hose, the MECH brand is much more time and cost saving and with no need of any machine against traditional hard pipe system installation.
Environmental Friendly
The flexible hose can be re-shaped and relocated to suit the final sprinkler location on the ceiling without draining the system, avoiding the pipe wasted by the inaccurate measurement. No sprinkler displacement even after high pressure test and eliminating the need for an oversized ring around the sprinkler.
Seismically
The stainless steel hose can absorb seismic shock, and protect the sprinkler system to maintain normal operation in the case of an earthquake. Installation

A.Connect Inlet Nipple Use pipe wrench to screw the Inlet Nipple into the branch outlet interface on water supply pipeline,use pipe sealant (tape or pipe glue etc.) to seal and apply tightening torque of approx.50N·m/35ft-lbs.Then tighten the Hexagon Slip Nut with 28N·m/20ft-lbs to ensure sealing performance.

B. Fix bracket set Attach side brackets to the main-rail of the T-bar grid and cross the square bar through 2 side brackets,with the center bracket in the middle.Tighten all fixing bolt on the side brackets with 4N·m/3ff-lbs.

C. Bending &Locating Bend the Flexible Hose body as desired (according to Technical Specification of each style of flexible hoses) and locate the Discharge Nipple into the center bracket.Tighten the bolts on center bracket with 4N·m/3ft-lbs after the proper location of sprinkler head has been found.

D. Connect Discharge Nipple Tighten the Slip Nuts with 28N·m/20ft-lbs and install sprinkler head to Discharge Nipple by following the sprinkler manufacture's installation instructions. Finally test leak in according with NFPA guidelines.

Packaging & Shipping FAQ
1. What is the minimum quantity of the order?
Answer: No MOQ requirement
2. How long is the delivery time of the order?
Answer: The delivery time for general orders is about 15 days. If the order is urgent and we have stock, around 7 days.
3. What payment methods do you accept?
Answer: We accept payment terms such as TT, L/C, DP, Western Union, Paypal, etc.
4. Where is your departure port of shipment? Is it possible to deliver to the designated warehouse?
Answer: The port of departure of our goods is generally Tianjin Port or Qingdao Port. We can transport the goods to designated warehouses, such as Yiwu, Guangzhou, etc.
5. What certificates do your products have?
Answer: Our products have FM/UL certificates, and we cooperate with third-party quality inspection certification before the factory, such as SGS,TUV
6.What are the series of your products?
Answer: Our products are divided into heavy series, medium series and light series according to different markets and standards. In order to buy more competitive products for you, please communicate your purchasing needs with the salesperson.
7. Do product packaging cartons and labels support customization?
Answer: Packaging cartons and labels can be customized according to customer requirements.
8.Does the purchased product support customization?
Answer: The product supports customization, but there are purchase quantity requirements and mold costs. For details, please consult the salesperson.
9.What are the packaging methods of the product?
Answer: The packaging of the product includes carton packaging, pallet packaging, wooden box packaging, and woven bag packaging.
