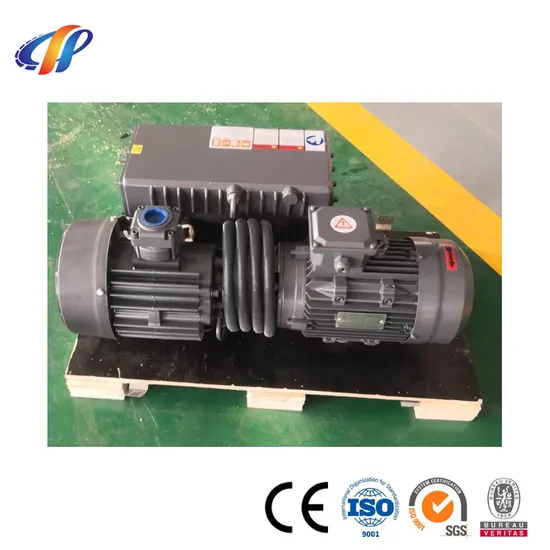

Xd100 Rotary Vane Vacuum Pump 220V, 230V with Oil for Chemical Printing

Product Description

Shenyang Haipurui Vacuum Technology Co.,ltd.
=======================================
Rotary vacuum pump
The XD series vacuum pump is a single-stage rotary vane vacuum pump with a simple structure, easy operation, and convenient maintenance. It can operate continuously within the range of 101325~10Pa (A)A widely used basic equipment for obtaining vacuum.

Model	XD-010	XD-021	XD-025	XD-040	XD-063	XD-100	XD-160	XD-202	XD-250	XD-302
Rated gas capacity m3/h	10	21	25	40	63	100	160	202	250	302
Extreme pressure mbar	0.1-0.5
Noise dB(A)	61	62	62	64	65	66	65	72	81	83
Working tem. ºC	81	82	82	83	84	85	65	72	81	83
Oil consumption L	0.5	0.5	0.5	1.5	2	2	5	5	7	7
Allowable pressure of water vapor mbar	40	40	40	40	40	40	40	40	40	40
Water vapor extraction rate Kg/h	0.15	0.3	0.3	0.6	1	1.6	2.5	4	4.5	5
Inlet thread inch	Rp¾"	Rp¾"	Rp¾"	Rp1¼"	Rp1¼"	Rp1¼"	Rp2"	Rp2"	Rp2"	Rp2"
Rated motor power Kw	0.37	0.75	1.1	1.1/1.5	1.5/2.2	2.2/3	4	4.5	5.5	7.5
Speed r/min	1440	2880	2880	1440	1440	1440	1440	1440	1440	1440
Weight Kg	17	18	18	48	58	72	157	157	195	211

Working principle1)The eccentric rotor is installed inside the pump chamber (stator), with three slots on the rotor where the rotor slides freely.
2)The rotor divides the internal space into three chambers, and the volume of these chambers changes with the rotation of the rotor.
3)The gas entering the intake chamber is compressed and then discharged outside the pump through the exhaust valve.
4)The oil injected into the intake chamber plays a role in sealing, lubricating, and cooling. Oil is driven by compressed gas and when
When entering the fuel tank, it is roughly separated due to the effect of gravity. Small oil molecules enter the exhaust filter. Internal
The circulation ensures that the collected oil returns to the pump chamber, and the circulation is controlled by a float valve to avoid atmospheric pressure when there is no oil in the collection system
Breaking the vacuum by entering the suction side of the pump chamber from the fuel tank.
5)The oil circulation is ensured by pressure difference.
Material chose 1)The overcurrent component is made of nickel phosphorus alloy Coating or PTFE coating, compartment sealing For PTFE seals and labyrinth seals,
Composite structure design meets the requirements of chemical engineering and manufacturing,The pharmaceutical and other industries have a certain degree of corrosiveness Artistic environment.
2)The overcurrent component is made of stainless steel (S304/S316L) and is suitable for highly corrosive environments. The pump casing, partition, and rotor are made of stainless steel material.
Material can chose others also , if need other material ,pls send us email .
Spare parts all export brand, Ensure high quality..
