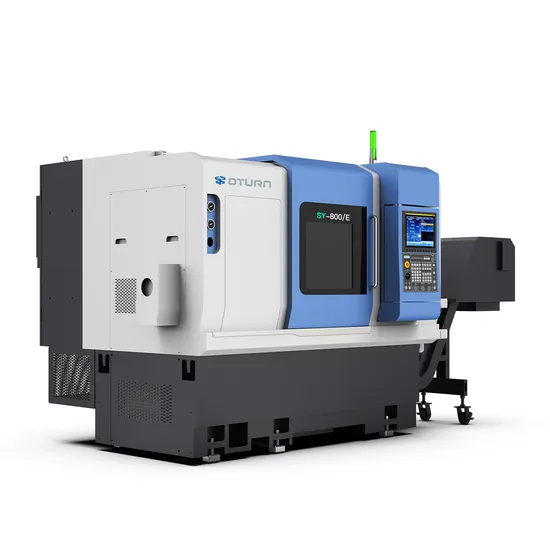

High Precision Oturncnc Slant Bed CNC Lathe with Fanuc Esy800

Product Description

Product Description
1. The spindle unit system has undergone strict dynamic balance testing and has high accuracy, good accuracy retention, small thermal deformation, and good thermal stability. The spindle's large aperture Φ79 can reach a maximum speed of 4000rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guide rails and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. The hydraulic tailstock has a high-rigidity structure and an integral tailstock, which can eliminate vibration and provide excellent stability. The sleeve is telescoped using a hydraulic cylinder, which is convenient and reliable.
6. It adopts Taiwan rotary chuck cylinder and is equipped with an automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various components can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

	Name	Unit	SY800/E
Travel	The largest diameter rotating bed	mm	Φ700
	Max. processing diameter	mm	Φ650
	Max.Swing Over Cross Slide	mm	Φ350
	Max. processing length	mm	790
Spindle Hydro cylinder Chuck	Spindle nose	type	A2-6
	Max. speed of spindle	rpm	4000
	Hydraulic Cylinder /Chuck	lnch	10″/8″
	Spindle hole diame	mm	Φ79
	Bar diameter	mm	Φ65
	Spindle motor power	kw	15/18
	Spindle motor torque(1:1.4)	Nm	134-196
X/Z axis feed	X/Z axis travel	mm	350/960
	X/Z axis rail specification	spes	45 Roller
	X/Z axis shaft wire specifications	mm	4012
	X/Z axis motor power	kw	2.9
	Positioning accuracy	mm	±0.005
	Repeat positioning accuracy	mm	±0.003
	X/Z axis moving fast	m/min	24/24
Servo Tutter	Tool position	pcs	12T
	The Tool biock specifications	mm	25X25
	Inner diameter tool holder specifications	mm	Ф40
	The adjacent tool change time	sec	0.2
	Positioning accuracy	/	±2"
	Repeat positioning accuracy	/	±1"
Tail stock	Programmable hydraulic tail seat	/	Hydraulic tail seat
	The biggest stroke of the tail	mm	630
	Morse Slide way	type	Mohs 5#
	Sleeve diameter	mm	Ф100
	Sleeve travel	mm	100
Mechanical Size	Machine size	mm	3500*2110*2100
	Machine Weight	kg	6700
Other	Cutting fluid tank volume	L	250
	Cooling water pump power	W	750
	Volume of hydraulic unit box	L	40
	Hydraulic oil pump motor power	kw	1.5
	Volume of lubricating oil tank	L	2
	Auto lube pump motor power	W	50

Products Configurations
