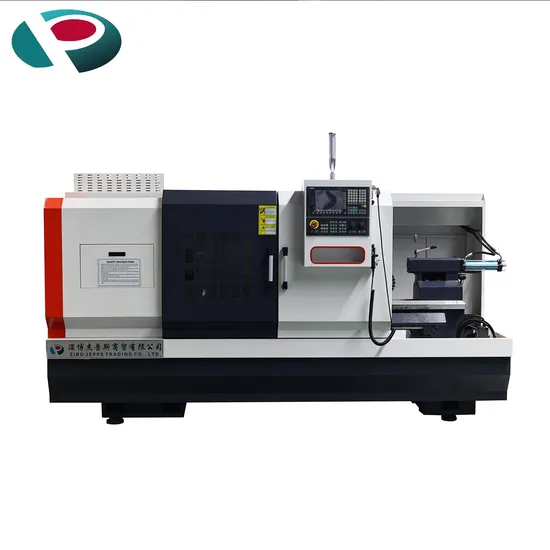

Ck6140 Metal Working High Precision China Cheap 220V Mini Automatic CNC Lathe
| US$9,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Ck6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS
Condition
New
Max.Swing Over Bed
400
Max.Swing Over Cross Slide
240
Max.Turning Length
550/750
Spindle Motor Power
5.5
Total Power
8
Transport Package
Wooden Box Packaging Export
Specification
2000/2200*1600*1800
Trademark
Jepps
Origin
Shandong
Production Capacity
100/Pieces/Year
Product Description
CNC Lathe Features
1. High strength of the base, widened pallet, suitable for strong turning
2. Four-station electric tool rest
3. Frequency conversion stepless speed regulation
4. Internal stress annealing process
5. High strength cast iron
CNC Lathe Technical Parameter:
| Specification | Units | CK6140 |
| Max.swing over bed | mm | 400 |
| Max.swing over cross slide | mm | 240 |
| Max.turning length | mm | 550/750 |
| Max.bar capacity | mm | Ø48/82 |
| Spindle nose(optinal chuck) | A2-6/A2-8 | |
| Spindle motor power | kw | 5.5 |
| Max.spindle speed | rpm | 1800 |
| Spindle bore | mm | Ø48/82 |
| X/Z axis rapid traverse | m/min | 6/8 |
| X axis limit Travel | mm | 280 |
| Z axis limit Travel | mm | 550/750 |
| X axis motor torque | N.m | 4 |
| Z axis motor torque | N.m | 6 |
| X/Z axis repeatability | mm | 0.002 |
| Tailstock bore | mm | 60 |
| Tailstock quill travel | mm | 100 |
| Total power | kw | 8 |
| Tailstock taper | MT4 | |
| Machine dimensions(L*W*H) | mm | 2000/2200*1600*1700mm |
| Weight | kg | 2200 |
1.Q: Which trade term I can choose? A: You can choose FOB,FCA 2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday. 3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account. 5.Q:What is your delivery time ? A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
