China Top Quality Rubber Vulcanizing Press/Rubber Press/Plate Curing Press (CE/ISO9001/SGS)

Product Description

Model No.: CX300B
Name : Rubber vulcanizing machine, Rubber plate vulcanizing machine,rubber moulding machine,Plate vulcanizing press, Rubber moulding press, Rubber press machine, Rubber vulcanizing machine, Rubber vulcanizing pres,Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
FEATURES
1- High precision for temperature,tolerance is +_1 degree

2- No oil ,pressure leakage,very seal completely.
3- PLC SIMENS automatic control, with alarm system for over-pressure,over-tempeature,vulcanizing time.
4- You can set the time and temperature , automatic control, when reach the time, the machine will stop heating ,automatic discharge for the pressure.
5- Crome plated for four collumn, at same time ,mirror polishing.
6- Famous brand hydraulic system, YUKEN,JAPAN.
7- Seal brand NOK,JAPAN
8- Vacuum pump : Busch, Germany
MAIN PARAMETERS:

Model	CX-100A	CX-100B	CX-160	CX-200	CX-250	CX-300	CX-400	CX-500
Mold-locking force(KN)	1000	1000	1600	2000	2500	3000	4000	5000
Max. working pressure(Mpa)	21	21	23	21	21	21	21	21
Heating plate size(mm)	450*450	500*500	520×540	520X540 or 600×600	600×600	700×700	800×800	1000×1000
Clamping stroke (mm)	250	250	250	250	300	300	400	500
Max.distance of two thermo-plate(mm)	400	400	420	420	430	400	700	700
Motor power(kw)	4+4	4+4	5.5+5.5	5.5+5.5	5.5+5.5	7.5+7.5	11+11	15+15

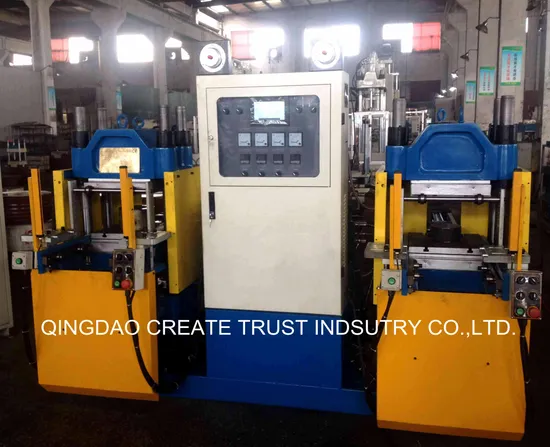

Production in our factory :
Service of us
1- We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .
2- The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
