Hzs25/35/50/60/75/90 M3 Concrete Batching/Mixing Plant Mixer From Factroy

Product Description

Excellent Mixing Performance Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform; The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts. Shaft seals use multi-sealed structures to effectively prevent the slurry leakage. Shaft bearings are outboard designed, and are replaceable; Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machine's durability and reliability; The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity. The reliable and effective greasing system reduces the oil consumption, and has easy daily maintenance; Decelerating system uses high-speed, synchronized, and closed planetary decelerators. Compact structure, high efficient transmission, and easy maintenance improve the machine's durability and reliability greatly; The opening of discharge gate can be adjusted by hydraulic system as per specific requirements. Emergency discharging function: when the machine accidentally stops, it is able to manually open the discharging gate and discharge the remaining admixtures.

Model	MS25	MS35	MS60	MS90
Theo capacity/hour	25	35	60	90
Mixer	500	750	1000	1500
PLD	PLD800	PLD1200	PLD1600	PLD2400
Silo	50t	100t	100tX2	100tX4
Power	60kw	80kw	100kw	210kw
Discharge hieight	3.8m	3.8m	3.8m	3.8m

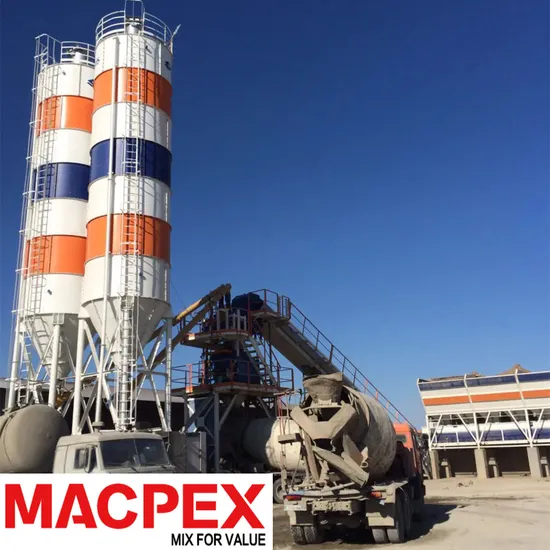

Fixed and mobile batching plant:
Shipment:
Certificate:Exhibition:
=================================
