Wireless Concrete Crack Depth Gauge Crack Width Camera

Product Description

Product Description

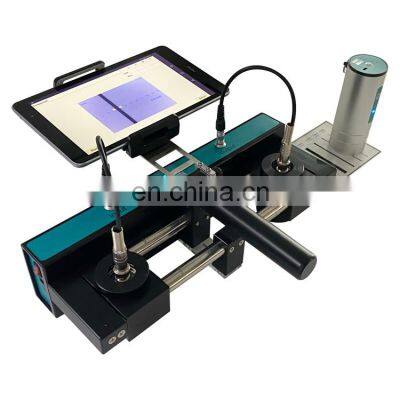

Product Usage and Features F800 Wireless Crack Monitoring DetectorUSAGE OVERVIEW:The wireless crack comprehensive detector integrates crack width measurement and crack depth measurement.It is used to measure the width and depth of cracks on bridges, tunnels, towers, buildings, concrete components, pavements, and surfaces of non-metallic components. PRODUCT FEATURES:1.Original wireless camera probe; host adopts Android system tablet, English/Chinese full touch operation;2.Intelligent interpretation of oblique cracks; images can be zoomed in and out.3.The sounding bracket has scale on it, large capacity tablet and TF card storage;4.The host can analysis data and generate report form without transferring to the upper computer.ParametersMaster control unit8-inch tablet Android operating systemWireless Width Gauge UnitTest range and accuracy0~10mm: 0.01mmMagnificationDigital 60 timesOperational modeTouch screen + shortcut keysConnection modeWifi connectionData transmission modeWireless cloud transmission (optional)Measuring methodAutomatic/ manualPower supply modeBuilt-in lithium batteryWorking hoursMore than 10 hoursWorking environment-10℃~ 40℃ ＜90%RHWireless Depth Gauge UnitTest scope5~500mmMeasurement accuracyLess than 5mm or 2%~10% of the actual depthOperational modeTouch screen + probe automatic triggerConnection modeBluetooth connectionData transmission modeWireless cloud transport(options)Measuring methodFast/standard measurementPower supply modeBuilt-in lithium batteryWorking hoursMore than 10 hoursPacking dimensions420*140*335mmDetailed ImagesWireless Crack Monitoring DetectorThe instrument is mainly composed of a tablet computer, a crack width measuring device and a crack depth measuring device. Operation:The 8 inch host adopts Android system with English full touch operation. Images can be zoomed in and out.When measuring the crack width, the tablet computer is connected to the crack width measuring device through wifi, and imaging on the tablet computer, the software can automatically interpret the value of the crack width; when measuring the crack depth, the tablet computer is connected to the crack depth measuring device via Bluetooth, which can pass quick measurement or standard Measure the crack depth value.ApplicationContact USCangzhou Lovely Technology Co., Ltd.It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 40 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?Get our in-time reply via email or telephone or instant messenger;Get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; Easily make the payment via West Union, Paypal, T/T for small value order;
