Precise Centerless Grinding Machine M1050A Centerless Grinder
| US$120,000.00-210,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1050A
Type
Centerless Grinding Machine
Processing Object
Shaft Rods
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Accuracy
0.002mm
Grinding Wheel
400*150*203mm
Max Diameter
50mm
Control System
Manual
Transport Package
Wooden Case
Specification
1920*1681*1479mm
Trademark
PHISONG
Origin
China
HS Code
8460291100
Production Capacity
500
Packaging & Delivery
Package Size
210.00cm * 180.00cm * 160.00cm
Package Gross Weight
3000.000kg
Product Description

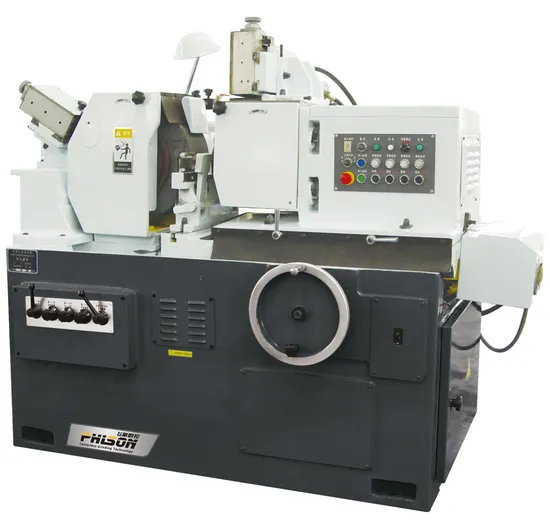

Centerless Grinding Machine M1050A
1. Salient features:
1.1 Grinding wheel and Regulating wheel
1.1.1.Structure of fixed grinding wheel and movable regulating wheel
1.1.2.The grinding wheel designed in cantilever type, and its spindle adopted
multi-plate long bearing bushed static-hydrodynamical oil film bearing.
1.1.3.Cantilevered regulating wheel, the spindle supports solid bearing sliding with 1:30 taper.
1.1.4.The regulating wheel feed slide is supported on Flat-V hydraulic unloaded guideway.
1.2. Electric
1.2.1.AC frequency converter is used for regulating wheel speed control .
1.2.2.Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
1.3. Machine body and design
1.3.1. Equipped automatic plunge device in the grinder.
1.3.2. Iron casting with high rigidity, natural aging.
2. Technical Data:
| In-feed Grinding | Dia. | 5-50mm |
| Length | 140mm | |
| Through grinding | Dia. | 5-50mm |
| GW SPEC. (O.D.*width*I.D.) | 400*150*203mm | |
| RW SPEC.(O.D.*width*I.D.) | PSA300*150*127mm | |
| GW Speed | 1668r/min | |
| RW Speed (stepless) | 20-200r/min | |
| Swiveling Angle of RW | Vertical | -2°~ +5° |
| Horizontal | 0°~ +3° | |
| RW carriage min. feed | 0.001mm | |
| GW dresser min feed | 0.01mm | |
| Height from center line of GW & RW to work rest | 220mm | |
| GW Motor | 11kw | |
| RW Motor | 1.5kw | |
| Power Supply | 3N 50HZ 380V (optional) | |
| Dimension(L*W*H) | 1920*1681*1479mm | |
| Machine Weight | About 2800KG | |
| Accuracy (standard bars) | Roundness | 0.002mm |
| Cylindricity | 0.003mm | |
| Roughness | Ra.0.32μm | |
