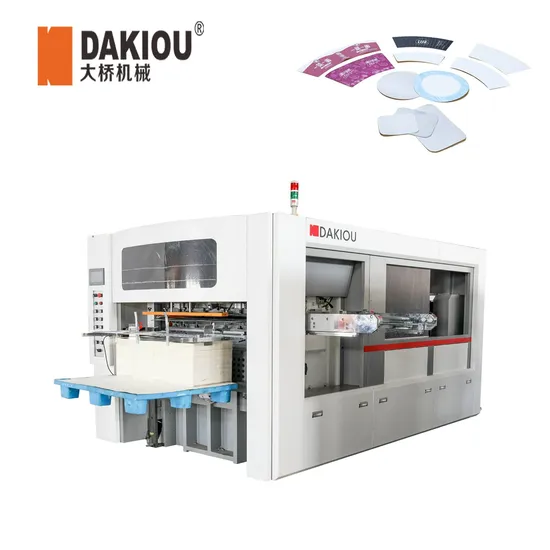

Dakiou Paper Cup Roll to Sheet Die Cutting Machine
| US$35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PY-950
Classification
Wooden Die
Driven Type
Hydraulic
Type
Paper Cutting Machine
Blade Material
Steel
Computerized
Yes
Size
950 or 1200
Process
Paper Machine
Usage
Office Paper Machine
Automatic Grade
Automatic
Certification
CE
Transport Package
Wooden Package
Specification
CE
Trademark
DAKIOU
Origin
Zhejiang, China
HS Code
844110000
Production Capacity
150-200times/Minute
Product Description
New Type PY-950/1200/1300AUTOMATIC HIGH SPEED ROLL DIE-CUTTING&CREASING MACHINE
Product Description
PY-950/1200 is widely used in printing,packing and paper cup industries.It's suitable for die cutting and creasing all kinds of paper cup(bowl),cigarette case,medicine paper box,envelope,paper bowl,gift bags and various paper r-plastic products(Also can put various sizes of corrugated paper).Main electrical components and parts we choose the international famous brands.The machine is adopting worm and worm wheel structure,the refore,producing products with high quality,low consumption and high safety.It is automatic feeding,color code tracing and precision die cutting.Pneumatic locking knife makes operation and changing mould more easy and convenience.
Technical Data
| Model: | PY-950 | PY1200 |
| Precision: | ± 0.10mm | |
| Capacity: | 150-200 times/min | |
| Max Feeding Width: | 970mm | 1220mm |
| Suitable Material: | 120-600g/m2 white cardboard, PE coated paepr, Kraft paper, etc. | |
| Total Power: | 14KW | |
| Total Weight: | 7000KGS | 10000KGS |
| Max Cutting Size: | 950 x540mm (standard) 950 x640mm(customized) | 1200x640mm(standard) 1200x750mm(customized) |
| Max Pressure: | 350T | 350T |
| Overall Dimension: | 4200 x 2100 x 1850mm | 4200X2300X1850MM |
| Working Air Source: | Air pressure0.5-0.7Mpa; Working air: 0.3m3/min | |
