2000W Fiber Laser Cutting Machine with CE Certificationcnc Fiber Laser Cutting Machine

Product Description

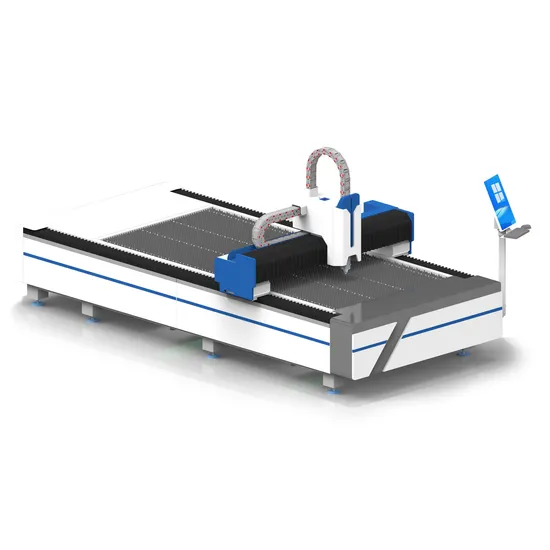

CNC FIBER LASER CUTTING MACHINE
Application area

Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.

Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.

Technical Parameters
Model	CN-3015-500W	CN-3015-1000W	CN-3015-1500W
Laser type	fiber laser
Laser power	500w	1000w	1500w
Machine power	≤8kw	≤12kw	≤15kw
Laser wavelength	1070-1080nm
Working area	3000mm×1500mm
X/Y/Z axis stroke	1530mm/3050mm/80mm
Cutting speed	Depends on the materials and its thickness
Repeated positioning accuracy	±0.02mm
Cooling type	water cooling
Aiming and positioning	red light
Voltage	3 phase 380V/50Hz/60A
Machine occupy space	9000*5000MM

Major Configurations:
Major Configurations:
A cast iron bed lasts forever
Mold pouring, clone production; integrally formed, reject splicing.
Auto focus laser head
Applicable to various focal lengths, achieve the best cutting effect of different thicknesses sheets metal.
Cast aluminum crossbeam
Integral steel mold pressure casting, light, flexible and efficient;
High flexibility is beneficial to high-speed cutting of various graphics based on high accuracy.
Touch control
Elegant appearance curve
The new 21.5 inch touch display has a large area and incorporates touch function for more convenience. The cooperation between the UI display and the cutting table makes a more intuitional operation. The 10 points touch is more accurate, which improves users' experience.
Control system Pro
Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness.
Wireless Remote Control Handle
Mobile phone size can meet one-handed operation; Elegant curves fit the hand palm well; Magnetic design can be adsorbed on the machine bed at any time, available at all times.
Packing and shipping
