100 Ton Multi Stage Hydraulic Jack (RMC-1001L)

Product Description

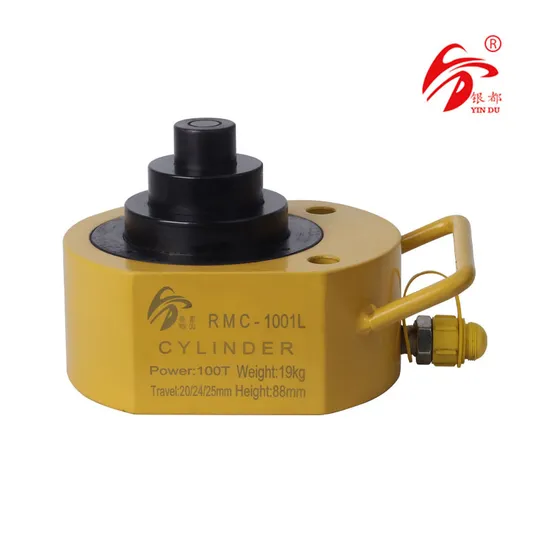

Multi stage hydraulic jack RMC-1001L

Multi stage hydraulic jack RMC-1001L
Item No.	RMC-101L	RMC-201L	RMC-301L	RMC-501L	RMC-1001L
Output(T)	10	20	30	50	100
Stoke(mm)	25	26	53	64	75
Effective area(cm2)	11.3	19.6	33.1	56.7	95
Oil Capacity(L)	0.022	0.041	0.058	0.113	0.225
Height of products(mm)	47	52	63	69	86
Extended height(mm)	74	80	118	135	163
Outside(mm)	81X56	100X77	115X95	138X115	185X160
Bore die(mm)	43	60	75	95	130
Principal Dia(mm)	38	53	63	85	110
Weight(kg)	1.5	2.4	4.5	7	15

Features:
1 Low height is suit for working in nallowness; Short stroke can broke up times and times.
2 The surface of plunger is finished with chrome plate to protect the using of longevity of the product.
3 Plunger has the function of retracting automatically.
Attention:
1. Before using, probably weight of the object should be taken, selecting the jack of proper specifications, overloading to use must be avoided.
2. Before using, the jack should be inspected, and filled with lubricating oil.
3. Before using, origin of forces should be inspected to avoid danger.
4. While using, jack must be placed steady.
5. While jacking up, rising altitude of the sleeve should below the red warn line which shows the Max altitude to avoid danger.
