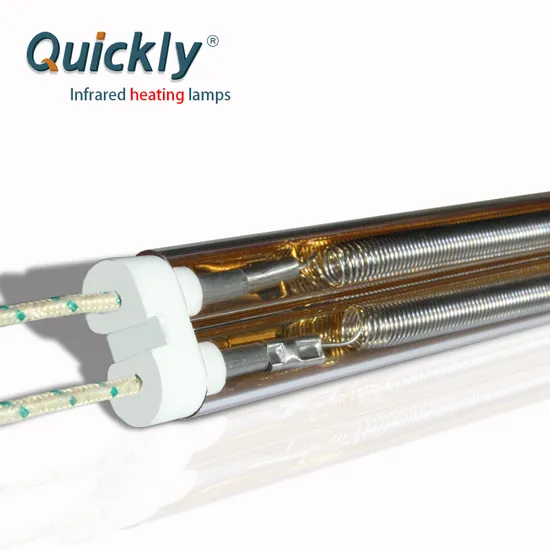

Powder Coating Gold Medium Wave Quartz Heater Lamps

Product Description

double tube medium wave infrared heating lamps for industrial IR dryer 1. Production Information

Production Description	powder coating gold medium wave quartz heater lamps
Tube Diameter	18*9mm	23*11mm	33*15mm
Overall Length	80-1500mm	80-3500mm	80-6000mm
Heated Length	30-1470mm	30-3470mm	30-5970mm
Tube Thickness	1.2mm	1.5mm	2.2mm
Max Power	40w/cm	60w/cm	80w/cm
Connection Type	lead wire at one or two sides
Tube Coating	transparent, gold coating, white coating
Voltage	80-750v
Cable Type	1.silicone rubber cable 2.teflon lead wire 3.naked nickel wire
Installing Position	Horizontal
All you wanted can be found here - customized service

2. Application Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form
of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating
process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks,
quick drying of primer and paint on furniture, printed circuit, and so forth.
3.Prouduction Process
4.Company Information
Hefei Quickly 80% workers have a long working years - more than 10 years, they are skillful with lamp production,in this case, we can
shorten our production period largely, for instance, we can finish 1000pcs IR lamps with 3 working days,all of the product are customized.
5.RFQ
1)how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2)Why Quartz Glass as the one main of material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
working temperatures of more than 1000°C and it is resistant to chemical corrosion.
3)Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing
the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power
into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
4)could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
5)Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
6)How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained
CE, ROHS, ISO9001.
7. How do you do lamps package?
8)How To make the shipping?
DHL,UPS,TNT,FedEX,S.F express,air or sea are all avaliable
