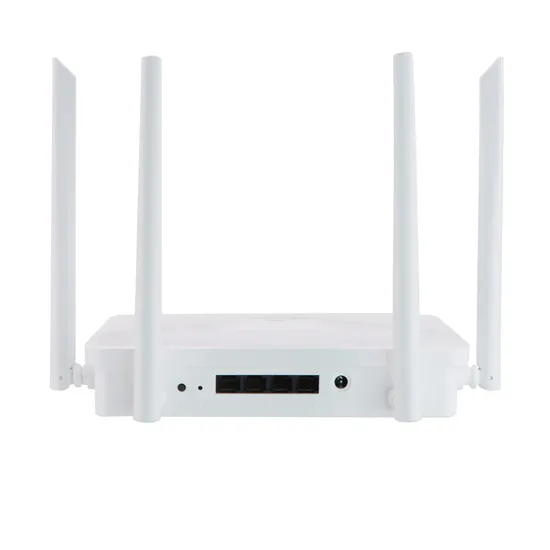

4 Antennas 64 People 2.4G 5g Ap/Extender WiFi5 1200m Wireless Router

Product Description

Dual Band 4 Antennas IPV4/IPV6 IPTV WR1200E SPEC SHEET V1.0 Wireless Router Network Equipment WiFi5 1200M Wireless Router About Product WR1200E is a new generation high-performance enterprise-level dual-band 1200M router that supports HW-NAT and 802.11ac technology. It achieves an Internet NAT forwarding speed of up to 900+Mbps. The 5.8G band provides a maximum access rate of 866.7Mbps, while the 2.4G band provides a maximum access rate of 300Mbps, meeting the demand for high-speed wireless internet access for up to 64 terminals simultaneously. It features gigabit network interfaces and wireless access speeds of 300Mbps for 2.4G 802.11b/g/n and 866.7Mbps for 5.8G 802.11a/n/ac. It is plug-and-play and offers high performance, high gain, high receive sensitivity, high bandwidth, and high access capacity. It not only provides a wider coverage range, but also delivers higher wireless transmission performance and stability, making it the ideal choice for high-density environments such as education, government, enterprise offices, hospitals, and conference halls. Product Feature *Supports 802.11b/g/n/ac protocols, providing wireless access speeds of 2.4G 300Mbps + 5G 866.7Mbps, and a total wireless access speed of 1200Mbps. *Gigabit Ethernet ports provide HNAT hardware acceleration for fast forwarding, with WAN port NAT performance reaching 900+Mbps. *Supports various network functions including routing mode, bridge mode, IPV4/IPV6, IPTV, relay, DDNS, VPN client, port forwarding/DMZ, and traffic control, easily adapting to various complex network scenarios. *Provides security protection such as WPS, WPA/WPA2, SSID hiding, guest network, MAC filtering, IP filtering, URL control, and anti-DDoS attacks, ensuring data security at all times. *Built-in quick setup wizard allows easy WiFi internet access without requiring professional knowledge. *Continuous product updates, feature enhancements, and performance optimizations ensure adaptability to various network environments, enhancing user experience. Package Contents - 1 CPE Router - Quick Installation Guide - Power Adapter

Hardware configuration
Main Chip	SF19A2890
Frequency	MIPS architecture, dual-core quad-thread 1GHz CPU
Memory	128MB
Flash	16MB
Wireless Technology	2.4G: 300Mbps with 802.11b/g/n MIMO technology
	5.8G: 866.7Mbps with 802.11a/n/ac MIMO technology
Device Interfaces	WAN1/LAN3 10/100/1000Mbps adaptive Ethernet
	ports
	DC power interface, compatible with power plugs with an outer diameter of 5.5mm, inner diameter of 2.1mm, and length of 9.5mm or above
Buttons	Reset button for restoring factory settings, long press for 6 seconds to restore factory settings
	WPS button for easy password-free connection
Indicators	Status indicator lights
Antennas	External 2.4G 5dBi stick antennas *2
	External 5G 5dBi stick antennas *2
Power	DC 12V/1A power supply with positive outside and
	negative inside
Operating/Storage Temperature	0ºC~40ºC/-20ºC~70ºC
Operating/Storage Humidity	10% to 90% (non-condensing) /
	5% to 90% (non-condensing)
Dimensions	20*12.5*3.6CM(Excluding antennas)
Weight	0.5KG
