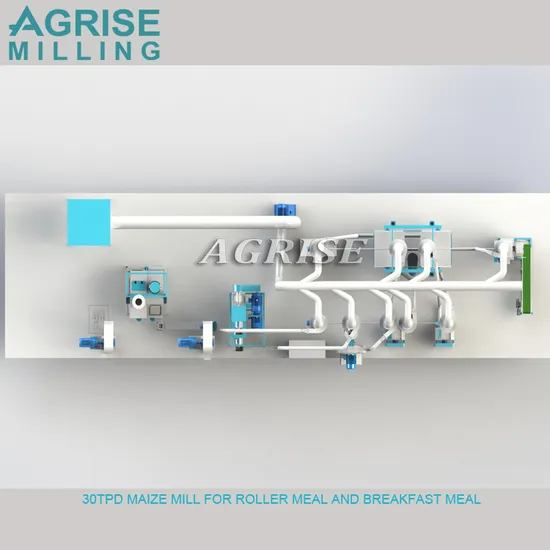

Small Automatic Maize Milling Machine Plant – 30t/24h Capacity for Corn Flour Production

Product Description

YMSF 28-5B Small Sorghum Maize Corn Grits and Flour Milling Machine Product Description
Corn peeling, grits and flour milling/wheat peeling and milling/rice milling/sorghum peeling and milling.
YMSF 28-5B has both corn peeling and grits milling functions. Internally installed motor: 7.5kw, 380v. Processing capacity: 300kg/h(corn, wheat, sorghum, rice and so on).
YMSF 28-5B corn grits and flour milling machine is integrated with corn peeling and polishing, grits and flour milling, end products classifying and winnowing. The clean grains are sent into the feeding inlet for peeling, degerming and black impurities removing. Peeled corn kernels are processed by milling. Then the milled mixture is classified into medium grits, small grits and flour. The internally installed air draft chamber can collect the corn bran from peeling process.
Working Principle of maize corn Grits and Flour Milling Machine
The clean raw maize is conveyed or manually feeded to the feeding inlet for dehulling which could get big size and clean maize kernels. Then worker put the kernels into another feeding inlet for futher grinding , it could produce grits and maize meal.There is high efficient air draft chamber for collecting the maize skin and further clean the micro powder and micro impurities in the maize grits.
Features of maize corn Grits and Flour Milling Machine
1. This maize milling machine set adopts both wet or dry dehull technology.
2. This kind of machine is internally installed efficient winnowing and dust removal fan, which can remove and collect corn skin and the impurities and dust from grits processing, then eliminate and collect these skins and impurities by cyclone.
3. Low energy consumption, wide usage
4. The machine is unique and innovative, multi-functional, energy saving, low broken rate, high capacity, high yield.
Output maize products show
Product Parameters

Model	Capacity				Power	Spindle Speed(r/min)	Weight	Size
	(KG/H)				KW		(KG)	(mm)
YMSF 28-5B	Maize peeling	Maize grits	Maize flour	wheat peeling	7.5	1000-1200	350	2200x900x1200
	500	1000	300	400

Detailed Photos
Packaging & Shipping

Customers Visiting
Flour Milling Machines
Grain machine workshop
