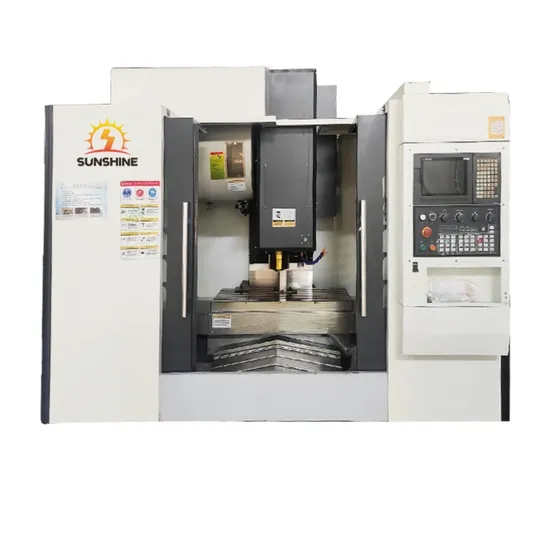

Vmc1160 Vertical Machining Center Factory Direct Supply 3-Axis Rail CNC Milling Machine

Product Description

VMC1160
VMC1160 Vertical Machining Center Factory Direct Supply 3-Axis Rail CNC Milling Machine
Customizable
Processing workpiece
Application fields
The application fields of machining centers are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy and many other industries and fields. It can process parts such as gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, discs, pulleys, etc.
Product Parameters

Specifications	unit	VMC650	VMC850	VMC855
Table size	mm	900x400	1000X500	1000x550
Table maximum load	kg	350	500	500
X/Y/Z axis travel	mm	650x400x500	800x500x500	800x550x550
Distance between spindle centerand column	mm	476	552	590
Distance between spindle endface and worktable surface	mm	100-600	120-670	120-670
X/Y/Z Max. feed speed	mm/min	10000	10000	10000
X/Y/Z Max. Rapid traverse	m/min	32/32/30	32/32/30	32/32/30
spindle speed	r/min	8000	8000	8000
spindle taper	type	BT40	BT40	BT40
Spindle motor power	kW	5.5/7.5	7.5/11	7.5/11
X/Y/Z axis servo motor power	kW	2.6/2.6/2.8	3.9/3.9/3.6	3.9/3.9/3.6
X/Y/Z motor connection		Direct	Direct	Direct
X/Y/Z Guide way type		Line rail	Line rail	Line rail
T slot	mm	3-18x125	5-18x90	5-18x90
Repeat positioning accuracy	mm	±0.004	±0.004	±0.004
Tool magazine		Hat type/disc type	Hat type/disc type	disc type
Tool capacity		16T/16T	24T	24T
Maximum tool weight	kg	7	8	8
Max. tool length	mm	250/300	250/300	300
Electric capacity	kVA	10	15	15
Machine dimension(LxWxH)	mm	2300x2000x2300	2600x2380x2700	2600x2380x2700
Net. weight (about)	kg	4500	5000	5000

Optional
Standard configuration
1.GSK CNC system
2. Three axes use Taiwan guide rails
3. Tool magazine uses servo ATC tool changer or dual servo
4. Fully enclosed processing area
Optional
1. CNC system FANUC, SIEMENS, HNC
2. Three-axis HEIDENHAIN linear scale
3. Fourth axis motor, amplifier
4. Automation cell with articulated arm robot
5. Automation cell with truss manipulator
6. Chain plate chip conveyor (including hopper)
7. Scraper type chip conveyor (including hopper)

Detailed Photos
CNC system
CNC systems are mainly used for precise motion control and process adjustment to improve production efficiency, and real-time status monitoring and feedback.
Tool magazine
The tool magazine mainly provides a location for storing tools, and can correctly select and position the tools according to program control for tool exchange; the tool changing mechanism executes the tool exchange action.
Linear guides
The friction resistance of the linear guides in the machining center is rolling friction, which is very low, so the positioning accuracy and repeatability can be guaranteed even during rapid movement. Taiwan brand roller linear guides are used, and the rollers and guides are in line-surface rolling contact, which has higher rigidity and load-bearing capacity than ball guides.
Workbench
The worktable of the machining center is usually made of high-strength materials, such as high-quality cast iron or welded parts, and is treated with aging and secondary tempering to eliminate internal stress and ensure stable processing of the workpiece. This design enables the worktable to withstand greater cutting forces and workpiece weight, ensuring stability during processing.
Our Advantages
Packaging & Shipping
Company Profile
Shandong Sunshine Machinery Co., Ltd. is a manufacturing enterprise integrating development, research, manufacturing, sales and service. It has many years of experience in CNC lathe manufacturing, years of quality insistence, years of dedicated struggle and professional manufacturing. The company's main products include: vertical machining center, horizontal machining center, five-axis machining center, CNC vertical lathe, CNC inclined lathe, hydraulic press, sawing machine and other equipment, which can meet the needs of automobile, engineering machinery, agricultural machinery, petroleum, shipbuilding, aerospace, hardware mold and other industries, and provide integrated production solutions and services for users in different industries. Our products are exported overseas.
Our company has a group of experienced professional mechanical engineering designers, precision processing equipment, exquisite processing technology and modern management mode, which lays a solid foundation for the production of high-quality products. At the same time, continuous technological innovation, more and more products, complete models, to create a reliable and practical mechanical equipment for you.
Shandong Sunshine Machinery Co., Ltd. has a complete product quality assurance system and after-sales service, consistently puts product quality and user needs in the first place, adheres to the principle of good reputation and user satisfaction, and provides high-quality services to our customers.
FAQ
Q1: Can it be installed and debugged overseas?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
Q6: What about the lead time for mass production?
A: The time will be determined according to the quantity of the specific ordered products.
Q7: How long will it take to ship?
A: About 30-60 days, the specific time is subject to the actual situation.
Q8: Packaging & Shipping:
A: Packed in wooden cases and transported by shipping.
Q9: What field is the product used in?
A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.
Q10: About the price?
A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.
