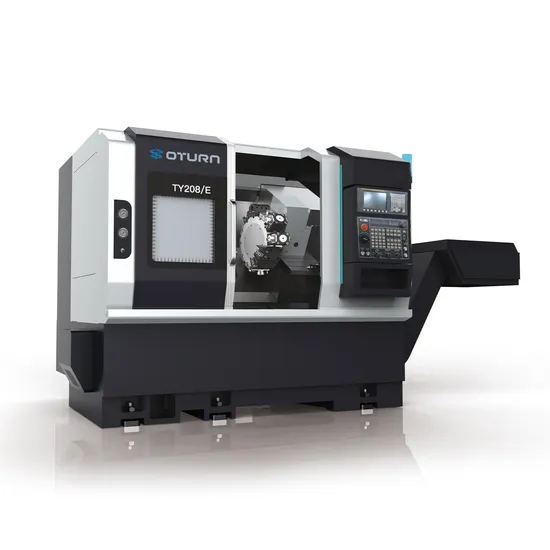

Oturncnc Automatic Ety208 Slant Bed CNC Lathe Machine with Linear Rail and Fanuc

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
1.Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
2.The rear-mounted rotor is used to facilitate installation and maintenance.
3.The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo turret. Equipped with a high-precision clutch to ensure positioning accuracy and repeat positioning accuracy. It is equipped with a servo motor to drive the cutter head to rotate, to select the tool in two directions or at any distance, use the hydraulic principle to loosen and clamp the clutch, cooperate with the proximity switch to feedback the clutch action signal, and quickly and accurately achieve the tool change action.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Programmable hydraulic tailstock and high rigidity structure of the integral tailstock can eliminate vibration and improve stability, which can be controlled by program or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
7. Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture. Product Parameters

Item	Unit	TY208/E
Max. turning diameter over bed	mm	Φ620
Max. processing diameter	mm	Φ510
Max. processing diameter over tool holder	mm	Φ300
Max. processing length	mm	520
Distance between centers	mm	600
Spindle nose	type	A2-6
Max. speed of spindle	rpm	4300
Oil cylinder/chuck	lnch	8″
Spindle bore diameter	mm	Φ66
Bar diameter	mm	Φ52
Direct drive spindle motor power	kw	18/22
Spindle motor torque	N.m	91/227
X/Z travel	mm	270/570
X/Z axis linear guide specification		35 roller
X/Z motor power	Kw	3
X/Z positioning accuracy	mm	±0.005
X/Z repeat positioning accuracy	mm	±0.003
X/Z axis fast move	m/min	20/20
Turret type		12T
Outer diameter tool holder specification	mm	25X25
Inner diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Positioning accuracy	/	±2"
Repeat positioning accuracy	/	±1"
Programmable hydraulic tailstock	/	programmable
Max. stroke of tailstock	Mm	440
Tailstock sleeve taper hole	type	Morse 5#
Sleeve diameter	mm	Φ100
Sleeve travel	mm	100
Machine dimension	mm	2600x2100x1800
Machine weight	kg	5000
Cutting fluid tank volume	L	150
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
