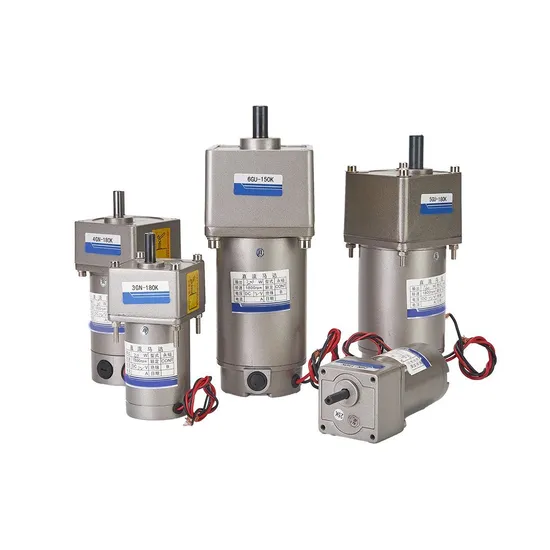

6W-40W DC Motor High Torque DC Geared Motor 1800rpm~3200rpm Gear Motor

Product Description

Product Description
Code: 2:60*60mm 3:70*70mm
4:80*80mm 5:90*90mm 6:104*104mm 7: 120*120
DC Motor
Rated power:6~40W
Reated voltage:6V/12V/24V/36V/48V/100V200V/220V
shape of motor shaft GU: Reinforced Helival Gear GN:General Helival Gear A1 :Milling Keyway A:Flat type. RV :Representative with RV dedicated
M is for brake
Gear Box Model&Dimension: 2:60mm 3:70mm 4:80mm 5:90mm 6:104mm 7:120mm
Gear Type
GN : Common Helical Gear
GU : Reinforced Helical GEar
Reduction ratio 1 : 50 50:Reduction Ratio 1:50 10X denotes the mid reduction ratio 1:10
Bearing Type K:Ball bearing (Mark KB for Type GU square case
General specification of DC Motor In the circumstance of normal ambient temperature and humidity, the resistance can be up to 20 MO or more when
Insulation resistance
500VDC megge is applied between the windings and the frame after rated motor operations .
In the circumstance of normal ambient temperature and humidity, there will be no problem to withstand 1.5KV
Insulation voltage (three phase400V: 2KV ) at 50/60Hz between the windings and the frame for 1minute after rated motor operation.
Temperature rise
The temperature rise should be lower than 80°C measured by resistance method when the motor is working
Insulation class class F ( 180)
Using temperature -10°C ~40°C No freeze
Using humidity Place without dew
