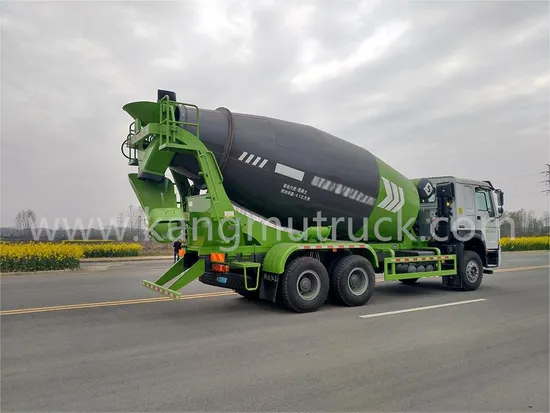

Sinotruk HOWO V7X Mixer Truck

Product Description

Product Description

Engine	Sinotruk 340/380 hp	Transmission	Sinotruk 10/12-speed transmission
Overall Dimensions	10396×2500×3990mm	Announced/Actual Volume	4.1/12 - 15 cubic meters
Total Mass	25000 (Kg)	Number of Girder Layers	Locally three-layered girders
Kerb Mass	15800 (Kg)	Rated Mass	9070 (Kg)
Fuel Tank Capacity	400L all-aluminum fuel tank	Wheelbase	4325 + 1350 (mm)
Number of Axles	3 (Three axles) (6×4)	Front Axle Tonnage	9-ton front axle
Anti-lock Braking System	ABS	Rear Axle Tonnage	16-ton double rear axles
Number of Tires	10 + 1	Tire Specification	12.00R - 20 original factory steel wire tires
Automobile Air Conditioning	Equipped with air conditioning	Additional Configurations	Automatically adjustable headlights, anti-spray device
Tank Material	Alloy steel (Q345B Wuhan Steel)	Cylinder Material	6mm alloy steel of 16 manganese steel
Blade Material	5mm	Head Material	8mm alloy steel
Reducer	Italian TOP / Bonfiglioli / PMP reducer	Hydraulic System	American Eaton / American Sauer / Italian PMP
Water Supply System	400L water tank with air pressure water supply	Heat Dissipation System	Kaitong radiator / Xinxiang radiator
Mixing Tank Raceway	Forged with Q345B by forging process	Discharge Chute	One-time stamping forming
Sub-frame	Seamless rectangular tube	Mixing Towing Wheel	Imported bearing base casting
Mudguard	One-time stamping formed arc-shaped mudguard	Painting Process	All in line with the standard of baking varnish process

Other Configuration:
Electric air conditioner; Rear-mounted spare tire carrier; Classic rearview mirror (manual); Chinese instrument panel; WP12.400E201 engine (with rear power take-off); Front and rear stabilizer bars; Manual cab lifting; HW19710 transmission; Main seat (airbag seat); VGD95 front axle (drum); MCX16ZG double-axle (drum); Double-layer frame (8 + 8/300); Front and rear reinforced multi-leaf springs (9/12); 8118 steering gear; Highway version; Standard exhaust system; Without ABS; High-position bumper (metal); 12.00R20 18PR (reinforced steel rim / mixed pattern); 300L fuel tank; Central locking; SINOTRUK Intelligent Communication Version C (with wiring harness and bracket reserved); Steel air storage tank; Fire extinguisher; Reverse buzzer; Rear towing hook; Under-vehicle start-stop switch; Intercooler protection device; 5.451; Front and rear coil spring cab suspension; MP3 (with Bluetooth phone) + storage box

Detailed Photos


FAQ

Are you trader or manufacturer?	We are the original factory, we have our own workshops and professional production lines.
Do you accept customization?	Yes, we fully accept customized services.
How long is your lead time?	The delivery time is 20-40 days as common, the exact delivery time depends on the order and the current production& shipping condition.
What are your terms of payment?	L/C and T/T.
What logistics methods can you use for transportation?	We support various transportation methods: (1) Shipping by frame container, ro-ro or bulk ship. (2) For China's inland neighboring countries, we can ship the truck by road or rail. (3) For urgently needed spare parts, we can ship by express or air.
Can I visit your factory?	You are more than welcomed to visit our workshop, we are located in Suizhou, Hubei province.
