GB/T Standard Laboratory Temperature and Humidity Chamber

Product Description

Product Description

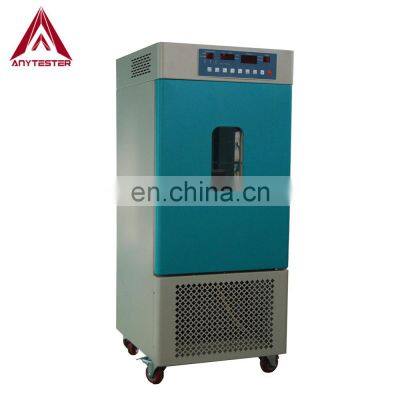

Product DescriptionHY4470 Temperature & Humidity Chamber with precise temperature and humidity control system, is suitable for compatibility test of rubber, plastic, leather, home appliances, instrument, meter, component and other product on the condition of high temperature, low temperature and humid environment. This machine conforms to GB/T 2423.1, GB/T 2423.2, GB/T 2423.4, etc.Feature★ Using mirror stainless steel liner, four corners of the semi-circular arc, easy to clean, the box compartment spacing is adjustable;★ With microcomputer temperature controller, temperature control is accuracy and reliability; Controllers, compressors and other key components use imported products;★ With temperature deviation sound and light alarm function, low temperature automatically stop humidification function;★ There is a 50mm diameter test hole in side, easy to test operation and measurement of temperature;★ With ground protection, compressor delay protection, over current protection;★ With over-temperature alarm prompt function;★ With work ending alarm;SpecificationModelHY4470-50HY4470-100HY4470-150HY4470-250HY4470-150DTemperature range4～60℃-8～60℃Temperature resolution±0.1℃±0.1℃Temperature uniformity±2℃±2℃Humidity range50%-95%RH60%-85%RH Humidity fluctuation ±3%～±5%RH±3%～± 5%RHDimensions of working chamber(mm)350×360×400 450×450×505 500×370×800 550×445×1 100 500×370×800External dimensions(mm)475×630×1135475×630×1135620×600×1480680×680×1750620×600×1480Input power400W500W500W680W800WPower supply220V 50HzPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIF L/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerCompany IntroductionContacting Us
