High Resolution 640X480 Infrared Digital Thermal Weapon Sight Infrared Night Vision Thermal Scope Gun Sight for Law Enforcement Hunting, Searching, Scouting.
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Eagle70CC
Output Signal Type
Digital Type
IP Rating
IP67
Customized
Customized
After-Sales Service
24h
Warranty
1-2 Years
Option
DC12V Power Adapter
Battery Type
2PCS 18650 Lithium Battery
Operating Time
6h
Item
Eagle 70cc
Type
Uncooled Fpa
Specification
According to different FOV
Trademark
ULIRVISION
Origin
China
Production Capacity
5000 Pieces/Years
Product Description

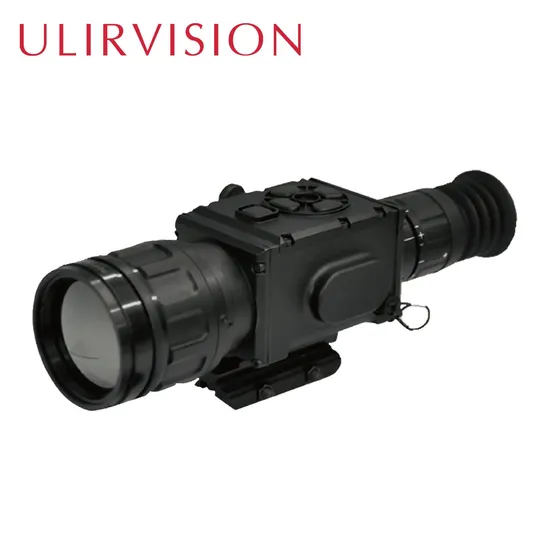

Product Description Eagle70CC is the thermal weapon sight with high resolution which is widely used for law enforcement. With shutterless technology, it can continuously detect heat of any targets against cooler background during day or night, especially in severe conditions such as total darkness, haze, dust, sleet, forest, grass, etc.
Product Parameters
| Item | Eagle 70CC | ||
| Detector Data | |||
| Type | Uncooled FPA | ||
| Material | aSi | ||
| IR resolution | 640×480 | ||
| Pixel pitch | 17μm | ||
| Spectral range | 8~14μm | ||
| NETD/Sensitivity | ≤60mK | ||
| Lens Data | |||
| FOV/Focal distance | 17.6°×13.2°/35mm | 12.4°×9.3°/50mm | 8.3°×6.5°/75mm |
| Focus range | 3m~∞ | 5m~∞ | 8m~∞ |
| Recognition distance(Vehicle) | 950m | 1200m | 1600m |
| Recognition distance(Human) | 320m | 420m | 600m |
| F | F 1.0 | ||
| Eye relief | 48mm | ||
| Diopter | -6~+4 | ||
| Image Performance | |||
| Display | 800×600 OLED | ||
| Image enhancement | IVE image enhancement algorithm | ||
| Frequency | 50Hz | ||
| Zoom | 2X, 4X | ||
| Polarity/LUT mode | Black hot/White hot | ||
| Reticle color | White/Black | ||
| Reticle type | 6 reticle types | ||
| Startup time | 4s | ||
| Contrast/brightness | Manual | ||
| Interfaces | |||
| USB | Yes | ||
| Picatinny rail | MIL-STD 1913 | ||
| Video output | PAL | ||
| Storage card | 32G | ||
| Power System | |||
| Battery type | 2pcs 18650 lithium battery | ||
| Operating time | ≥6h | ||
| Environment Parameters | |||
| Operating temperature range | -20ºC~+50ºC | ||
| Storage temperature range | -40ºC~+70ºC | ||
| Encapsulation | IP67 | ||
| Vibration | MIL-STD-810F | ||
| Shock | MIL-STD-810F | ||
| Physical Data | |||
| Size(without eyepiece) | 187mm×87mm×77mm | 213mm×87mm×77mm | 252mm×99mm×87.5mm |
| Weight(with battery) | <900g<> | <1kg<> | <1.2kg<> |
| Packing | |||
| Standard | Thermal imaging sight, 4pcs batteries, Charger, Picatinny quick release interface, Composite output cable, Warranty card, User manual, Certificate, Transport case | ||
| Option | DC12V power adapter | ||
