Plastic Waste Recycling Equipment with Washing Line for PE Granulating Process

Product Description

State-of-the-Art Plastic Recycling Washing Line: Engineered by Wenzhou Wandun Machinery Co., Ltd., this PE Plastic Recycling Machine with Enhanced Washing Line is meticulously designed to deliver unparalleled efficiency in the granulating process. Experience superior performance and unwavering reliability, specifically tailored to meet and exceed your plastic recycling needs. Trust in cutting-edge technology to streamline your operations and elevate your productivity.
Product Description
The plastic recycling washing system is a cornerstone of Kitech machinery's recycling series. This ingeniously crafted, modular marvel is tailored to adeptly handle rigid plastics and bottles. It efficiently processes a diverse range of plastics such as PE, LDPE, HDPE, PC, PS, and ABS, ensuring optimal soft recycling.
Kitech offers customizable module combinations meticulously designed to meet your specific requirements and material conditions. With the versatility to handle an extensive range of raw materials, Kitech provides production lines ranging from 300 to 10,000 Kg. Select from economy to high-level configurations to perfectly match your production needs.


Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
*** (person /shift)	3-5	3-8	3-10	3-12

Main Technical Variables:
Belt conveyor:
Heavy-duty type, robustly equipped with a gear motor;
Side walls ingeniously designed to prevent material spillage;

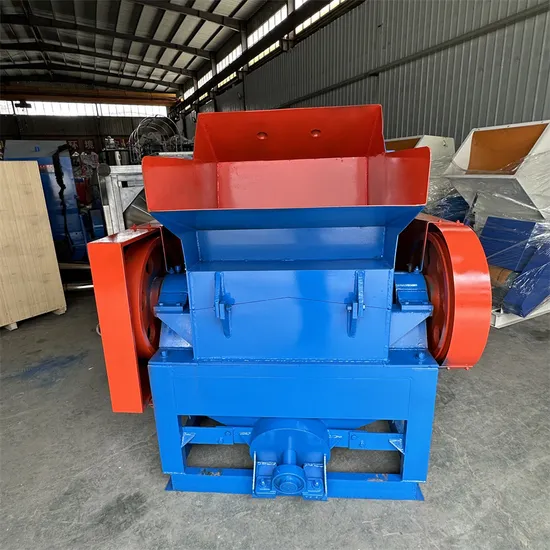

Crusher:
Precisely engineered for excellence, the blades are sharp and powerful;
Enclosed cutting chamber to securely contain materials;
Externally adjustable knives for superior ease of use;
Shredder:
Specially designed hopper to effectively prevent material ejection;
Four-way rotating knives with innovative holders;
Extremely robust pedestal bearing housings for enhanced durability;
External mounting of bearing pedestal designs for superior functionality;
Screw conveyor:
Constructed with premium wear-resistant stainless steel screws;
Triple sealing with an external bearing design for maximum reliability;
Washing tank:
Double station discharge valve strategically positioned at the bottom;
Variable speed control via advanced inverter technology;
Heavy-duty washing unit, enabling efficient separation of materials with different densities;
Friction washer:
Rotor and blades meticulously crafted from wear-resistant steel;
Rotor with dynamic balance treatment, achieving unparalleled accuracy of ±3-5g;
Active material washing to safeguard and extend the life of downstream units;
Centrifugal dryer:
Rotor with dynamic balance treatment, ensuring exceptional accuracy of ±3-5g;
Mild circular screen innovatively designed in a four-piece polygon configuration;
The washer/dryer housing is constructed with high-quality stainless steel welded construction;
Squeezing dryer:
Heavy-duty shaft and blade for superior performance;
Double hydraulic press units for enhanced efficiency;
Motorized screw squeezing for optimal operation;
Hot air pipe dryer:
Pipeline meticulously constructed with stainless steel welding;
All material-contacting parts are premium stainless steel;
Hot air drying system engineered for efficient drying;
Storage buffer:
Expertly designed to connect directly with the pelletizing process;
Large storage capacity for seamless and uninterrupted operation;
Electrical cabinet
Equipped with international brand low voltage components for superior reliability;
Double circuit safety relay for enhanced protection and safety;
Intelligent and modular PLC controlling system for seamless and efficient operation.
Q1. What are your terms of packing?
A: Our standard packaging includes carefully placing the machine on a protective pallet and securely wrapping it with plastic film to ensure safe and secure transportation.
For exports to European countries, we ensure that our wooden boxes undergo thorough fumigation to guarantee safe and compliant transport. Each item is meticulously packed using high-quality PE film, and we proudly offer customized packing solutions crafted to meet the unique requirements of our esteemed customers.
We are well-equipped and fully prepared to accommodate your special requests, ensuring that your specific needs and preferences are met with precision and care.
Q2. What are your payment terms?
A: Our payment terms are straightforward and designed for your convenience: we require a 30% deposit via T/T, with the remaining 70% due before delivery. To maintain transparency, we provide detailed photos of the products and their packaging before the final payment is made, giving you complete peace of mind.
Q3. What are your delivery terms?
A: We offer flexible delivery terms including EXW, FOB, CFR, and CIF to accommodate your specific logistical needs, ensuring a seamless and efficient delivery process.
Q4. What is your delivery timeframe?
A: Our standard delivery timeframe generally ranges from 30 to 60 days following receipt of your advance payment. The exact duration may vary depending on the specific items and quantities in your order, allowing us to tailor our service to your precise requirements.
Delivery times are flexible and may vary based on the specific details and specifications of your order, ensuring that we meet your scheduling needs.
Q5. Do you test all your products before delivery?
A: Absolutely, we conduct a comprehensive 100% test on all our products to ensure they meet our stringent high-quality standards before delivery, guaranteeing your satisfaction.
Q6: How do you ensure long-term and positive business relationships?
A: 1. We consistently deliver high-quality products at competitive prices, providing maximum value to our customers and fostering trust.
2. We treat every customer with the utmost respect, building genuine and lasting business relationships and friendships, regardless of their background or origin, ensuring a foundation of mutual respect and collaboration.
