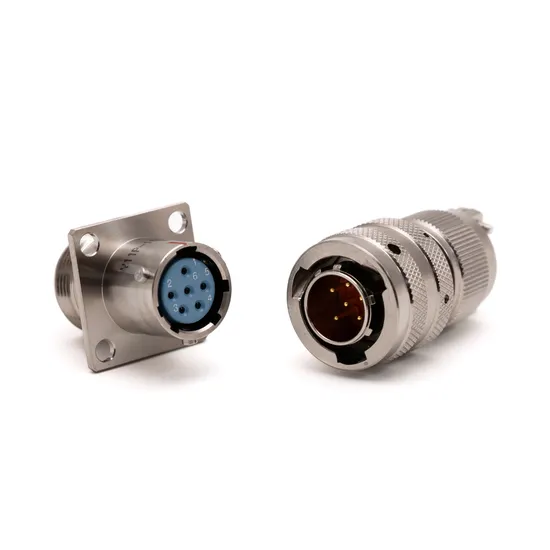

Y50series Push Pull Cable Aluminum Circular Electrical Aviation Load Waterproof Female Socket Electric Connector

Product Description

Product Description The Y50X Y50EX Y11 series circular electrical connectors feature a bayonet quick connection, offering advantages such as rapid connection, reliable contact, small size, high density, and excellent environmental resistance. They are widely used in electrical and electronic equipment line connections in aviation, aerospace, marine, field communication, armored vehicles, industrial power, postal and telecommunications, and railway command systems. Y50EX SERIES Y50X SERIES Y11 SERIES Mechanical properties
- Vibration: Frequency range 10Hz - 2000Hz, acceleration 196m/s²
- Shock: Acceleration 980.7m/s²
- Impact: 392m/s²
- Mechanical life: 500 cycles
Environmental performance
- Operating temperature: -55ºC~+125ºC
- Relative humidity: 90%~95% at 40 ° C ±2 ° C
- Working pressure: 101.33KPa ~1.33Pa
- Air tightness: no more than 4.6*102Pa.cm3/S
Behaviour of electricity
- Rated operating voltage

work environment	rated operational voltage	(M)rated operational voltage
normal temperature status	600V	500V
Damp-heat condition	600V	500V
Low pressure condition(4.39KPa)	300V	250V

-withstand voltage

condition	withstand voltage	(M)withstand voltage
sea level	1500V	1300V
21336m(4.39KPa)	375V	350V

-insulation resistance:no less than3000MΩ,damp and hot no less than100MΩ
Prevent misplug
There are keyways with different angles on the outer circle of the insulator, which can be transposed and assembled by the manufacturer according to the needs of the user to ensure that the plug and socket of the same specification will not be inserted by mistake. So that plugs and sockets corresponding to the same assembly number of the same variety can be inserted, and plugs and sockets corresponding to different assembly numbers can not be inserted. Main Products
