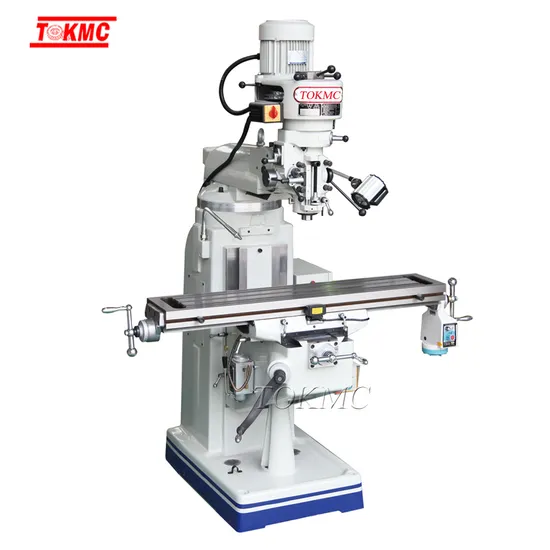

C/W 3 Axis Dro RAM Turret Vertical Milling Machine
| US$2,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6323A
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, RoHS
Condition
New
Milling Machine
RAM Turret Milling Machine
Table Size
230X1067mm 9X42"
Motor
3 HP
Spindle Speed
65- 4500 Rpm 50Hz
Spindle Taper
R8, ISO30 ISO40
Transport Package
1400X1476X2030mm
Specification
1000kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
bridgeport milling machineX6323A
•Double 55° dovetail guide way is adopted on both Y,Z-axis, so it is easy to adjust and repair.
•Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 3HP motor, standard spindle 16 speed step pulley head,optional is variable speed.
| Model | unit | X6323A | X6323B | |
| Table size | mm | 230x1067(9'x42") 230x1246(9"x49") | ||
| Longitudinal travel | mm | 670 | 610 | |
| 850 | 790 | |||
| Cross travel | mm | 310 | 310 | |
| Vertical travel | mm | 410 | 390 | |
| Ram travel | mm | 315 | 315 | |
| T-slot | 3x16 | 3x16 | ||
| Spindle travel | mm | 127 | 127 | |
| spindle speed | rpm | 16 steps 50HZ:65-4500 60HZ:80-5440 Optional:variable 65-4500 | ||
| Spindle motor | hp | 3 | 3 | |
| Spindle taper | R8 | R8 | ||
| Auto quill feed | mm | 0.04,0.08,0.15 /0.0015",0.003",0.006" revolution | ||
| Head swivel L/R | 90° | 90° | ||
| Head tilting F/B | 45° | 45° | ||
| Weight | kg | 1000 | 1060 | |
