Automatic CNC Sheet Metal Steel Bending Machine Mini Hydraulic Press Brake

Product Description

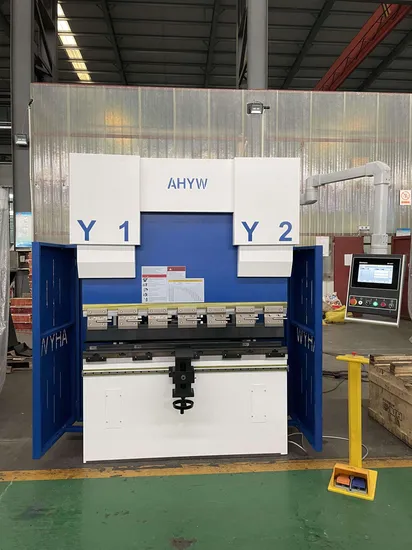

Products Description ANHUI YAWEI 60T 1600 SMALL CNC PRESS BRAKE Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
CNC press brake use for continues and complex working pieces manufacturing, advance in Efficiency. Main features • Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA53T CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure
excellent performance Machine Block YWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time. CNC Backgauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning. DA53T CNC System * "Hot-Key" touch navigation
* 10.1″ high-resolution color TFT
* Up to 4 axes (Y1, Y2 + 2 aux. axes)
* Crowning control
* Tool/material / product library
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
* TandemLink (option)
* USB memory stick interfacing
* Profile-T offline software Details Images Mechanical Quick Clamps Using mechanical fast clamp for upper dies, changing dies more convenient and safe. 42Crmo Toolings The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life. KACON Pedal Switch KACON pedal switch from South Korea improving the service life and operational sensitivity. France Schneider Electrics Stable France Schneider electrics, Panasonic Servo drive to improve the positioning accuracy of X, Y axis. Bosch Rexroth Hydraulic System Germany Bosch Rexroth integrated hydraulic valve block. Germany VOITH Oil Pump Using Germany VOITH/HAVE Oil Pump guarantee the oil service life and reduce noise during working. Dual Linear Guide Dual linear guide for CNC Press Brake fingers stops movement. Backgauge Fingers AHYW Z1&Z2 Auto press brake back gauge moving on dual linear guide. Ball Screw & Linear Guide Adopting HIWIN ball screw and linear guide to improve the machine backguage accuracy. OPTIONAL Mechanical Crowning Compensation Italy DSP Laser Guarding System DELEM Controller DA66T With 8+1 Axes Servo Motor Optional Oil Cooler R Axis Backgauge Up and Down
