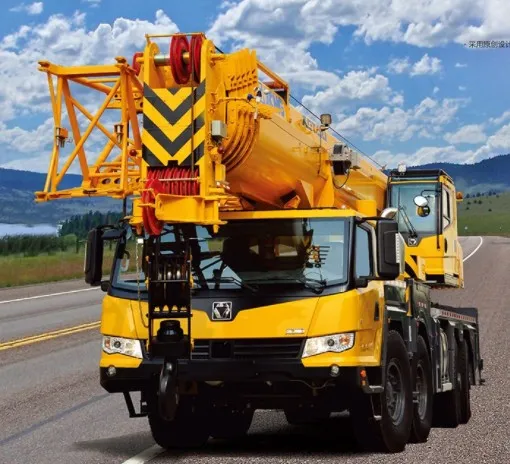

Construction Hoisting Machinery New Hydraulic 50tons Mini Boom Truck Cranes Mobile Small 30 Ton Telescopic Boom Cargo Truck Crane Best Price for Sale

Product Description

1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity. 2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth
telescoping movement, and efficiently prevent boom torsion after side loading. 3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing
are imported parts and have reliable performance. 4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products. 5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage. Product Parameters

Description		Unit	Parameter value
Overall length		mm	13930
Overall width		mm	2780
Overall Height		mm	3630
Axle base	1st ,2nd axle	mm	1470
	2nd ,3rd axle		4300
	3rd ,4th axle		1350
Wheel Base		mm	2304+2075
Front overhang/rear overhang		mm	2389/2064or 2376/2064
Front extension/rear extension		mm	2131/226 or 2144/226
Total vehicle mass in travel configuration		kg	42200
Axle load	Front axle	kg	16200
	Rear axle		26000
Engine Model			WD615.338
Engine rated power		kw/(r/min)	276/2200
Engine rated torque		N.m/(r/min)	1500/1300-1600
Max. travel speed		km/h	85
Min. steady travel speed		km/h	2~3
Min. turning diameter		m	24
Min. ground clearance		mm	327
Max. grade ability		%	42
Approach angle		°	19
Departure angle		°	15
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	40
Exterior noise level during acceleration traveling		dB (A)	≤88
Noise level at seated position		dB (A)	≤90
