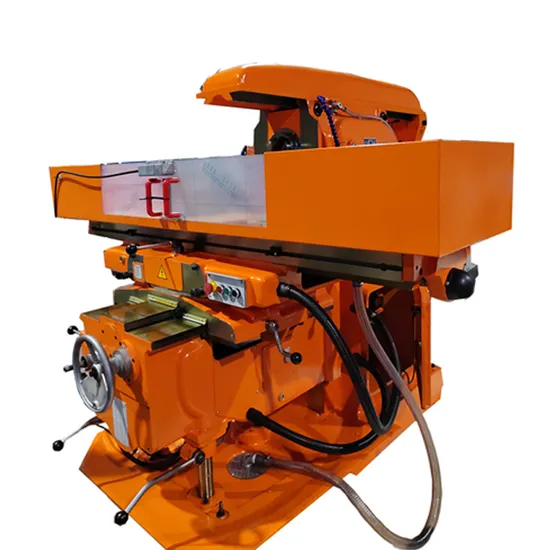

X6140 Heavy Duty Manual Metal Horizontal and Vertical Universal Milling Machine
| US$12,750.00-18,550.00 | 1 set (MOQ) |
Basic Info.
Model NO.
X6140
Type
Worktable Milling Machine
Object
Tool
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Universal Milling Machine
Table Size
400X1700mm
Max.Longitudinal Travel
900/880)mm
Max.Cross Travel
315/300mm
Max.Rotary Angle of Table
45
Dintance Between Spindle and Table Surfa
30,350/440
Spindle Speed Step
18 Speeds
Spindle Speed Range
30~1500rpm
Main Motor Power
11kw
Feed Motor Power
1.5kw
X,Y,Z-Axis Power Feed
Automatic
Transport Package
Wooden Case: 2300X1800X1750mm
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China, Shandong
HS Code
8459590000
Production Capacity
100PCS/Month
Product Description
Heavy duty Manual Metal Horizontal and vertical universal Milling Machine FEATUREuniversal milling machine FEATURES
1 Swallow tail guide ways with high accuracy.
2. Hardened and ground table surface, guideways with longer life.
3. Automatic feeds on x,y axes, motorized lifting and lowering of table on z axis
4. Head spindle swivel angle +/-45 degrees;
5. with enforce lubricating on X,Y,Z-axis and guide way with less ware out for the machine
5.Knee part with 3 supporter for Heavy load on the worktable.
6. Table Longitudinal and cross auto-feed with interlock system to avoide the error operation.
7. Worktable can be rotary, by +-45°for more wide use of the cutting. By the rotary, with the dividing head accessory can realize spiral plane cutting .
8. Main transmission and feeding part are with gear-drive for heavy-cutting. Detailed Photos
SPECIFICATION
Main Specifications:
specification | unit | X6132 | X6132B | X6132H | X6132BH | |
| Table size | mm | 320X1325 | 320X1600 | 320X1325 | 320X1600 | |
| Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 | 700/680 | 900/880 | |
| Max transverse travel(manual/auto) | mm | 255/240 | ||||
| Max vertical travel(manual/auto) | mm | 320/300 | 410/390 | |||
| Max rotary angle | ±45° | |||||
| Distance between spindle axis table | mm | 30/350 | 30/440 | |||
| Spindle speed step | 18 steps | |||||
| Spindle speed range | 30-1500 | |||||
| Feed range of table travel | steps | 18 steps | ||||
| Main motor power | kw | 7.5 | ||||
| Feed motor power | kw | 1.5 | ||||
| Overall size (L x W x H) | mm | 2294X1770X1610 | 2294X2050X1610 | 2294X1770X1790 | 2294X2050X1790 | |
| N.W/G.W | kg | 2650/2950 | 2740/3040 | 2850/3150 | 2940/3240 | |
| Specification | Unit | X6140 |
| Table size | mm | 1700X400 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 18 |
| Max.load | kg | 800 |
| Longitudinal travel(manual/auto) | mm | 900/800 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 350/330 |
| Table feed range(X/Y/Z) | mm/min | 23.5-1180/23.5-1180/8-394 |
| Rapid feed speed | mm/min | 2300/2300/770 |
| Spindle speed range | r/mm | 30-1500 |
| Spindle speed step | steps | 18(steps) |
| Distance between spindle axis table surface | mm | 30-380 |
| Power of spindle motor | kw | 11 |
| Overall dimension(LXWXH) | mm | 2556X2159X1770 |
| Net weight | kg | 3850 |
(Standard accessories)
| - | 1set | |
| ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
| Horizontal arbor assembly | Φ32 | 1 piece |
| Horizontal arbor assembly | Φ50 | 1 piece |
| Oil gun | 1 piece | |
| Drawbar | - | 1 piece |
| Double-ended wrench | 17x19 | 1 piece |
| Double-ended wrench | 22x24 | 1 piece |
| Double-ended wrench | 27x30 | 1 piece |
| Double-ended wrench | 32x36 | 1 piece |
| Single head spanner | 14 | 1 piece |
| Single head spanner | 50 | 1 piece |
| Inner hexagonal wrench | 5 | 1 piece |
| Inner hexagonal wrench | 8 | 1 piece |
| Inner hexagonal wrench | 10 | 1 piece |
(Optional Accessories)
| XC Series Vertical milling head | XC632B | 7:24 ISO |
| XC Series Universal milling head | XC634A | MT4 |
| Universal dividing head | 125A | Include three-jaw chuck |
| Universal dividing head | 160 | Include three-jaw chuck |
| Swivel table | φ320 | Manual |
| Indexable carbide mill tool | φ63 | With shank |
| Indexable carbide mill tool | φ100 | No shank |
| Indexable carbide mill tool | φ160 | No shank |
| Sizing block | 240x120 | 6 pieces/set |
| Clamping kit | ||
| Milling chucks | 15 | |
