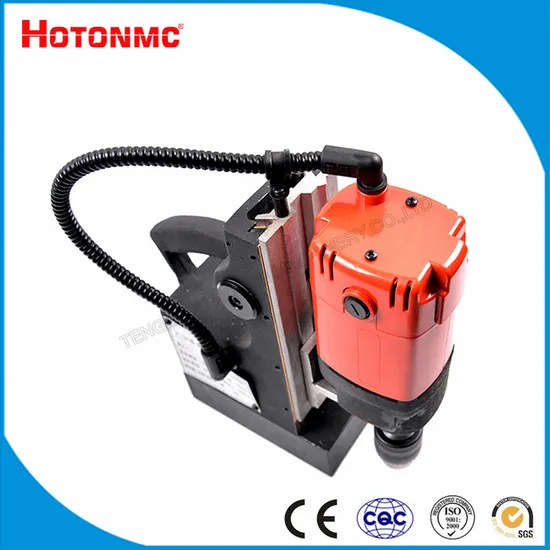

Magnetic Base Drill Machine JC13A JC16A
| US$200.00-1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JC13A JC16A
Drill Brand
Processing Metal
Applications
Building and Industrial
Impact Drill Structure
Ball-type
Specification
13mm, 10.5Kgs
Impact Drill Head
Adjustable Drill
Drill shape
Round
Condition
New
Customized
Customized
Drill Capacity
13mm,16mm
motor
800w,900w
Max. Travel
140mm
speed
600r/min
weight
10.5kg,10.7kg
Mini. steel plate thickness
8mm
Voltage
110V/220V
Transport Package
Carton
Trademark
HOTONMC
Origin
Shandong, China
HS Code
8459290000
Production Capacity
50 PCS/Month
Product Description
Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers, machinery manufacturing, environmental protection, oil and gas pip line industries
| MODEL | JC13A | JC16A |
| Voltage | 110V/220V | 110V/220V |
| Motor power (w) | 800 | 900 |
| Speed (r/min) | 600r/min | 600r/min |
| Magnetic adhesion(N) | >8500 | >9500 |
| Twist drill (mm) | Φ13 | Φ16 |
| Max.Travel(mm) | 140 | 140 |
| Mini. plate thickness(mm) | 8 | |
| Weight(kg) | 10.5 | 10.7 |
| Contact Us: |
Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
