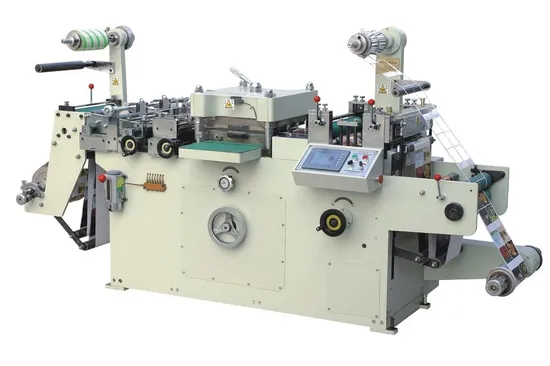

Hsm-320 Automatic Self Adhesive Label Die Cutting Machine
| US$5,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HSM-320
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products
Die Cutting Speed
30-180time/Min
Max Feeding Diameter
450mm
Max Web Width
320mm
Max Die Cutting Length
300mm
Transport Package
Standard Wooden Packaging
Specification
CE
Trademark
Changs
Origin
Zhejiang, China (Mainland)
HS Code
8443192290
Production Capacity
30 Sets/Year.
Packaging & Delivery
Package Size
260.00cm * 95.00cm * 160.00cm
Package Gross Weight
1500.000kg
Product Description
Characteristics:
This machine is applicable to die cut through platenwith high precision,while the computer controls the slices and conveyor.The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position,while the die cutting,discarded delivery or auto trademark labeling can be finished in the processing of one web.The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark.It is an ideal complete set of soft printing machine,continuous thread printing machine,relief printing machine and die compress machine for anti-false trademarks.
Technical Parameters:
| Model | ZBS-320 | ZBS-420 |
| Die Cutting speed | 30-180time/min | 30-100time/min |
| Max Feeding Diameter | 450mm | 450mm |
| Max web width | 320mm | 420mm |
| Max Die Cutting Width | 300mm | 400mm |
| Max Die Cutting Length | 300mm | 400mm |
| Positioning Precision | 0.10mm | 0.10mm |
| Main Motor power | 2.2kw | 3.7kw |
| Total Power | 3.5kw | 5.5kw |
| Power Supply Voltage | 220v±10% | 380v±10% |
| Weight | (about)1500kg | (about)1800kg |
| Overall Dimension | 2600x950x1400mm | 2800x1050x1400mm |
