vapour permeability tester for water vapour penetration resistance of textiles

Product Description

Product Description

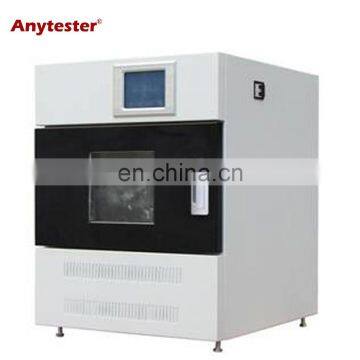

Product DescriptionHY0462N Textile Water-Vapour Permeability Tester is a new generation of water permeability measuring instrument, it adopts the inlet temperature and humidity sensor with touch screen for easy to operate. It is used to determine the water vapour permeability of various fabrics (including moisture permeable coated fabric) and non-woven clothing. StandardGB/T 12704ASTM E 96BS 7209 Features1. 320 * 240 touch screen control, easy to operate.2. Adopt stainless steel heating tube, will not rust even use a long time.3. User can set the test program, adapt to different requirements. 4. The wind speed have been debugging well in the factory, conform to test standard. 5. High-precision temperature and humidity control, adopt the Switzerland imported sensors, temperature fluctuations <0.5℃, humidity fluctuations<2%.SpecificationItem HY0462NTest chamber temp range RT~45℃Resolution 0.1℃Control precision±0.5℃Humidity range40%RH~95%RH±2%RHHumidifying capacity≥300ml/hTest time1s~99h59min59sTurntable speed0~10rpmCirculating air speed0.4m/sArea of each test cup2827mm2 , 3848mm2 or 3217mm2 (optional) Number of test cup6Power supplyAC220V, 50Hz 1.5kWInstrument Dimension500×600×700 (mm)Weight60kg
