China High Quality Fully Anti-Static PE Electrically Conductive Stretch Film for Conductive Container Bags

Product Description

Fully conductive film, three-layer conductive PE film
Product Description Fully conductive film, three-layer conductive PE film
The wide customizable range is 500-2000mm, and the thickness range is 0.03-0.2mm; By using a three-layer co extrusion process, the film has conductive properties in both horizontal and vertical directions, making it suitable for chip cutting or bag making.
The surface resistivity can be adjusted between 103~108 ohms as required and remains permanently stable for a long time. After SGS testing, it fully meets ROHS requirements
Features of PE electric conductive film:
1.Electric conductive film, also known as black conductive PE film,black conductive film tube material,drum conductive film packaging,antistatic black PE film.
2.Electric conductive film is made of black conductive polyethylene material.It has good electrostatic discharge performance and mechanical performance.After processing it can be made into black conductive bags, conductive sheets, conductive strips, black conductive shielding materials.
3.The electric charges accumulated on the film and its inside work pieces can be well discharged from the film. Besides, the bag has good conductivity and light-proof performance, capable to pack light-sensitive components or products with special packaging requirements.
4.The surface resistance can adjust betwween103 -109 Ω
5.Our PE electric conductive film has conductibility, excellent and balanced physical properties, and also passes through ROHS qualification by SGS evaluation.

Product Parameters

Parameter of PE Electric Conductive Film
Parameter		Index	Unit	Measuring instrument	Method and detail description
Width		0-5	MM	Tape
Colour		Black		Visual
Thickness	Range	±8	MM	Thickness dial indicator	Use the same dial indicator for both sides, and take 5 width points evenly and average
Tensile strength	Vertical	≥25	MPa	Tension machine	GB/T 1040.3-2006 : 15MM wide sample, length 100MM, clamping distance 30MM, speed 250MM/min
	Horizontal	≥25	MPa
Elongation at break	Vertical	≥300	%
	Horizontal	≥300	%
Conductive resistance value	Min	103		Resistance meter	GB/T 14216
	Max	106
Appearance		There is no damage, winding, pipe breakage and intermediate film breakage		Visual

Product Application Suitable for aviation, communication, photosensitive equipment, and instrumentation of integrated circuits, chips, sensors and other precision electronic components used in the production process of instrument production processes. Damage, so that the charge accumulated on the surface of the items can be well leaked through the bag body.
At the same time, it is also suitable for the internal packaging of powder products such as explosives such as explosives and pigments, and conductive container bags such as electrostatic products, and conductive container bags that need to be well released.

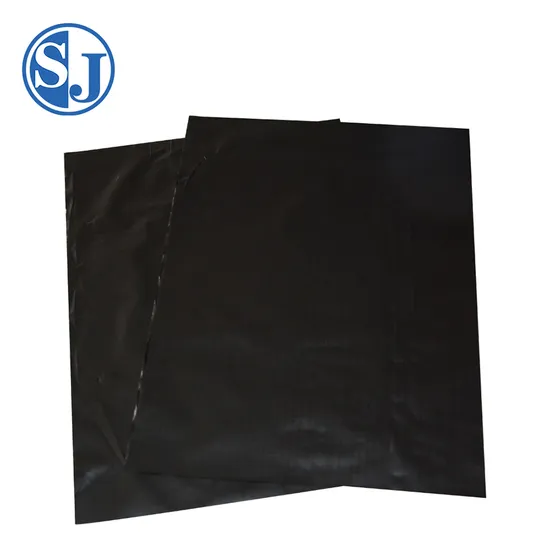

Product display
Company Profile Changzhou Shujie Plastic Industry Co., Ltd. Was established in July 2003 and is located in Changzhou, China Dinosaur City. After years of development, the company has many brand-new film making equipment and high-quality technical research and development talents. The company has always been committed to improving film packaging solutions. Program, and has high-end PE coating substrate and self-adhesive film production capacity. In order to adapt to market development, the company has been adhering to the tenet of "providing customers with products and services that meet their requirements" for many years. On the basis of meeting the requirements, strive to achieve product upgrades, take the road of high-end, environmental protection, and energy saving, and rely on technological innovation to realize brand value. The company adheres to the people-oriented, pragmatic and innovative business philosophy, realizes the common growth of the company and employees, and achieves mutual benefit and win-win with customers while providing products and services that meet customer requirements.
Certifications
Packaging & Shipping FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What are your main products ?
A: Our main product are PE Film,Cotton Packing Film,Plastic Film,Polyethylene Film.
Q: How long is your delivery time?
A: Generally 7-10 days, it's according to quantity.
Q: Do you provide samples? Is it free or exra?
A: Yes, we could offer the sample for free but do not pay the cost of transport.
