EPS Foam Plastic Block Thermoforming Machine

Product Description

EPS Foam Plastic Block Thermoforming Machine
Product Description

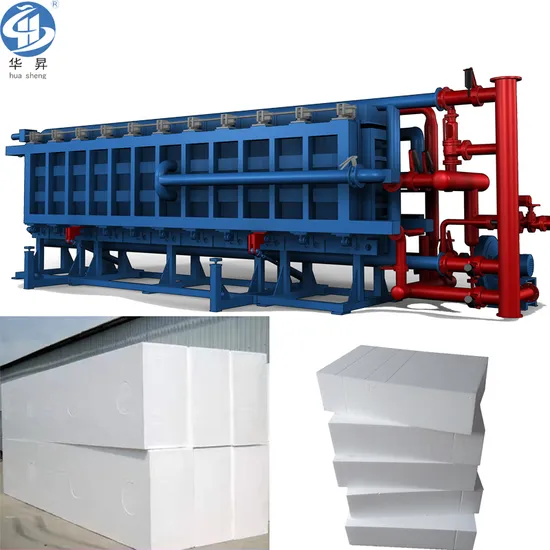

HS-FB Series EPS block moulding machine main features:
Performing fully automatic, semi-automatic, middle starting and manual operating mode; Using hydraulic system mold clamping, stable and reliable; The main intake of steam control valve is pneumatic valve, good sealing, and long life; Using the programmable control with color touch screen control, easy to operate; Automatic feeding, convenience and high efficiency; The main components (CPU template, touch screen, etc.) all use international and domestic brands; Forced air-cooled refrigeration, high cooling efficiency, low moisture content; Weighing shelf is available to buy individually according to customer requirements HS-FB Series EPS block moulding machine technical data:

Subjects		Unit	HS-FB-2000	HS-FB-3000	HS-FB-4000	HS-FB-6000
Mould size		mm	2060×1040×520	3070×1240×640	4080×1240×640	6120×1240×640
Product size		mm	2000×1000×500	2000×1200×600	2000×1200×600	2000×1200×600
Steam	Inlet size	mm	φ100	φ100	φ150	φ150
	Consumption	Kg/cycle	20-30	30-40	40-50	50-70
	Inlet pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Compressed air	Inlet size	mm	Φ65	Φ65	Φ80	Φ80
	Consumption	Kg/cycle	1-1.5	1.5-1.8	1.8-2	2-2.3
	Inlet pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Injector	Entry number	pc	4	6	8	12
	Entry size	mm	70	70	70	70
Drainage size			φ100	φ125	φ150	φ150
Main drainage size			φ150	φ150	φ200	φ200
Blower power		KW	4	4	5.5	7.5
Power	Capacity	KW	9.5	11	13	13
	Consumption	KW/h	5	6	6.5	6.5
Overall dimension			4700×2800×3000	5700×2800×3000	6700×2800×3000	8700×2800×3000
Weight		T	4.8	6.5	8.5	10

Detailed Photos
Company Profile
Zhejiang Huasheng Machinery Equipment Co., Ltd, located in Fuyang, Hangzhou City, China, is a manufacturer
for high-end EPS foam machinery and EPS moulds.
Huasheng has developed into a modern and standardized production base with an area of over 18, 000 square meters,
more than 100 employees and a team of highly qualified and educated researchers, and obtained 15 invention patents.
The main products include high-precision automatic pre-expander machine, fully automatic shape molding machine ,
EPS block moulding machine, EPS foam mold, EPS lost foam white area equipment etc.
We warmly welcome all customers and friends from both domestic and abroad.
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a factory of EPS machine and EPS mold.
Q: what is your payment term?
A: 30% down payment upon order confirmation, 70% balance payment before shipment.
Q:what is your delivery time?
A: It takes usually 45-60days for machines, and 25-30days for EPS mold.
Q: Do you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
